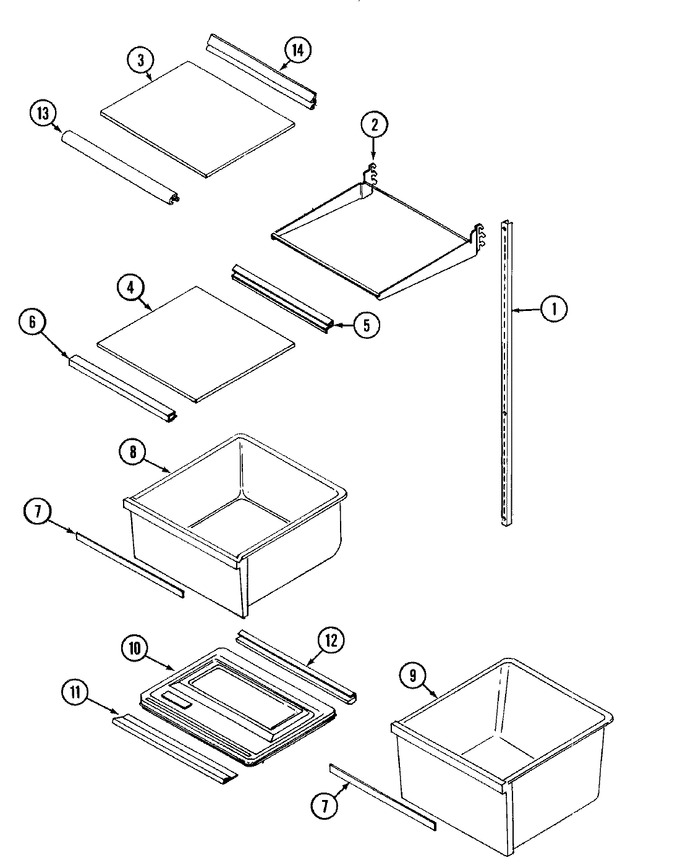

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	400037-28		Screw	10	Appelez-nous	-
1	67311-1		Rail, Shelf Support	10	Appelez-nous	-
2	61001449		Frame, Shelf	10	Appelez-nous	-
3	68139-22		Glass, Cantilever Shelf	10	Appelez-nous	-
4	68139-23		Crisper Shelf(glass)	10	Appelez-nous	-
5	68157-2		Seal, Crisper Pan (rear)	10	Appelez-nous	-
6	66650-2		Seal, Crisper Pan (front)	10	Appelez-nous	-
7	68124-105		Insert, Crisper Pan	10	Appelez-nous	-
8	61001573		Pan, Crisper	10	Appelez-nous	-
9	61001574		Pan, Meat	10	Appelez-nous	-
10	65608-6		Cover, Meat Pan	10	Appelez-nous	-
11	65648-2		Seal, Meat Pan (front)	10	Appelez-nous	-
12	65649-2		Seal, Meat Pan (rear)	10	Appelez-nous	-
13	61001660		Trim, Shelf (front)	10	Appelez-nous	-
14	61001450		Trim, Shelf	10	Appelez-nous	-
