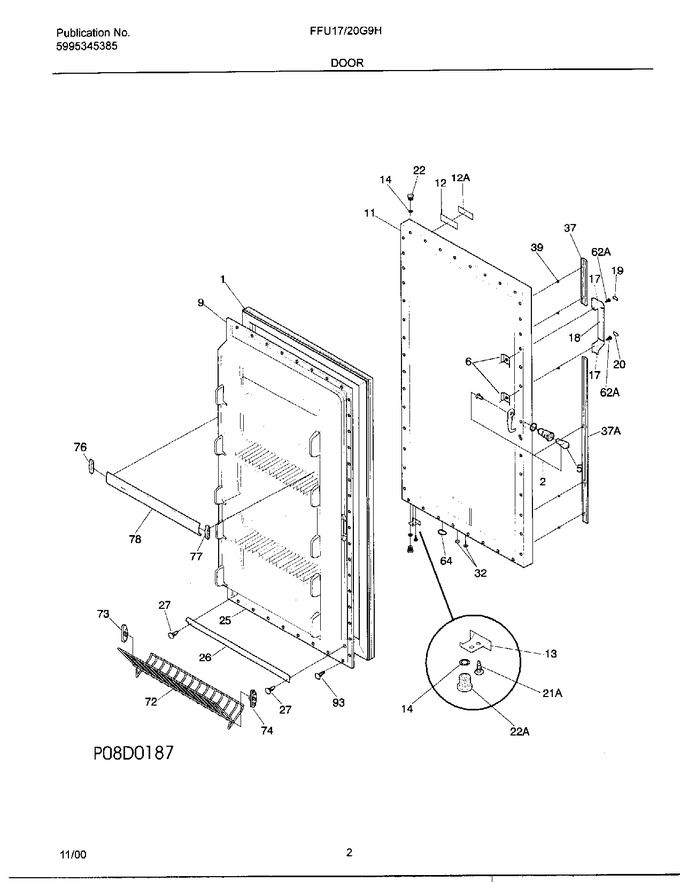

02 - Door
04 - Cabinet
06 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507199 | Gasket-door,white (Replaces: 216522312) |
|
Immediately | $ 159.60 | ||||
| 1 | 5304507200 | Gasket-door,white (Replaces: 216522309) |
|
Immediately | $ 188.19 | ||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 6 | 218990001 | Screw-anchor,8-18 (Replaces: 5300158222) |
|
$ 16.30 | |||||
| 9 | 216528108 | Panel-inner Door |
|
$ 272.84 | |||||
| 9 | 216527806 | Panel-inner Door,white |
|
- | |||||
| 11 | 5303925471 | Panel-door,white |
|
- | |||||
| 11 | 5303925472 | Panel-door,white |
|
- | |||||
| 12 | 218364004 | Frame-nameplate, White |
|
- | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 17 | 216087400 | End Cap-white (2) |
|
$ 43.81 | |||||
| 18 | 216518000 | Handle,center |
|
- | |||||
| 19 | 216208900 | Insert, Handle Top |
|
- | |||||
| 20 | 216209001 | Insert,handle Bottom |
|
- | |||||
| 22 | 216443600 | Bearing |
|
$ 0.68 | |||||
| 25 | 216022800 | Screw, Washer Head, 8, 18 X 1/2 |
|
- | |||||
| 26 | 216524201 | Gasket,secondary (Replaces: 216524200) |
|
$ 49.62 | |||||
| 27 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 32 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 37 | 216373300 | Trim-handle,upper |
|
$ 88.36 | |||||
| 37 | 216211200 | Trim-handle,upper |
|
- | |||||
| 39 | 08016809 | Fastener,door Strip |
|
- | |||||
| 64 | 216403700 | Plug-button, Base Door |
|
$ 58.12 | |||||
| 72 | 216514100 | Shelf,tilt Out ,wire |
|
$ 123.80 | |||||
| 73 | 216513900 | End Cap,tiltout ,lh |
|
$ 48.86 | |||||
| 74 | 216514000 | End Cap,tiltout ,rh |
|
$ 48.05 | |||||
| 76 | 216521800 | Support Psuedo Bin,lh |
|
$ 24.05 | |||||
| 77 | 216522100 | Support Psuedo Bin,rh |
|
$ 24.20 | |||||
| 78 | 216579500 | Rack Shelf,psuedo ,32 |
|
- | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 12A | 215008604 | Label-nameplate,white |
|
- | |||||
| 21A | 08005520 | Screw-door Stop |
|
- | |||||
| 22A | 297006800 | Bearing-hinge, Btm (Replaces: 216503200) |
|
$ 12.29 | |||||
| 37A | 216087600 | Trim-handle,bottom |
|
- | |||||
| 62A | 131420300 | Screw, Cr Truss Head, 8-18ab X 0.750 |
|
$ 13.46 | |||||
| F5 | 297147700 | Key, Lock (Replaces: 216388700) |
|
Immediately | $ 7.57 | ||||
| NI | 216485600 | Label-frozen Food |
|
- |
