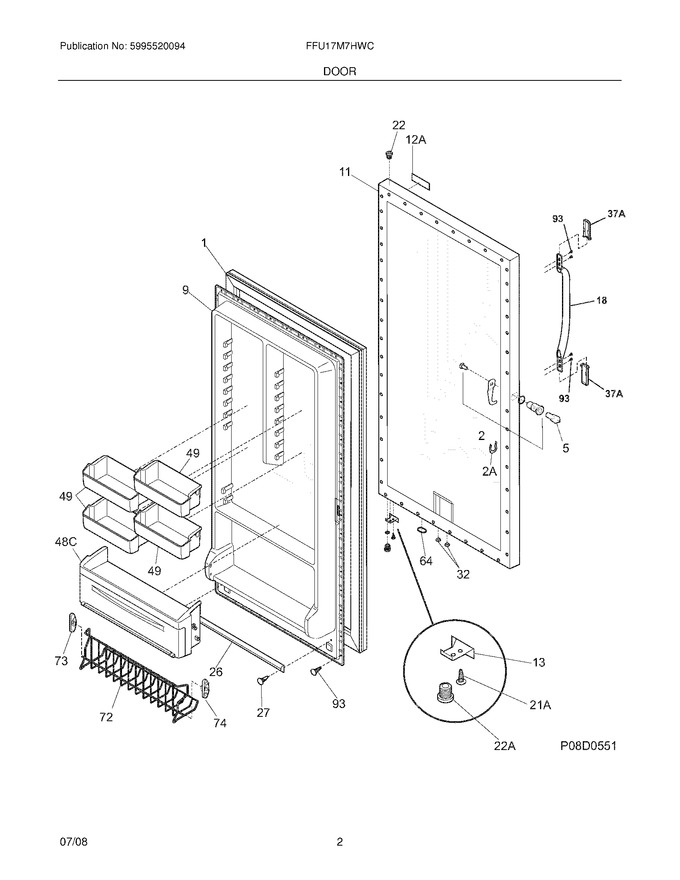

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507200		Gasket-door,white   (Replaces: 216522309)			Immediately	$ 188.19
5	297147700		Key,lock			Immediately	$ 7.57
9	297185800		Panel-inner Door,frzr				$ 147.95
11	297245209		Panel-outer Door,white		Appelez-nous	-
13	297257000		Door Stop,chrome ,rh/lh				$ 16.63
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
32	5309950074		Valve, Breather				$ 12.48
49	A00299203		Bin-door,2-liter   (Replaces: 297187200)				$ 80.33
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	297186700		Shelf,tilt Out ,wire		Appelez-nous	-
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
12A	216892802		Nameplate				$ 6.15
21A	297197500		Screw,door Stop Mtg ,fh38-16x.750 ,p Twin				$ 14.46
22A	297006800		Bearing-hinge,btm, W/o`ring				$ 12.29
2A	297213300		Clip,spring				$ 10.17
37A	215870619		Trim-handle, 2.47``, White, W/chrome Band				$ 72.72
48C	297350101		Bin-door,w/lid   (Replaces: 297186400)			Immediately	$ 139.23
F2	297318600		Lock Assy   (Replaces: 297213400)				$ 36.87
F37A	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	240435601		Nut-anchor,door Hdl Screw				$ 4.07

    View Diagram in Separate Window       Print Part List
