SELECT A DIAGRAM

01 - Cover


03 - Door

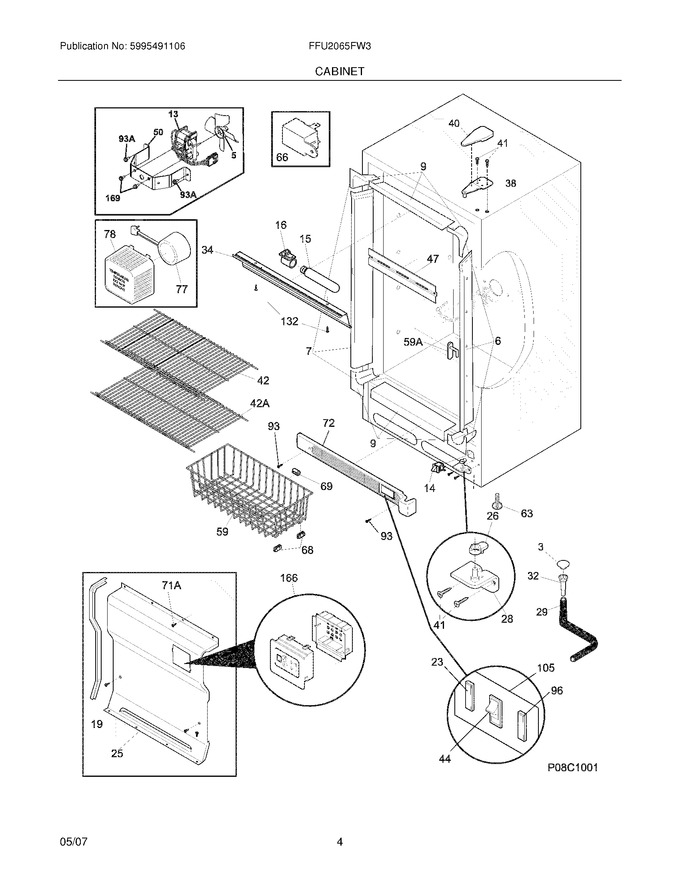

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
19	216204901		Gasket-cover Evap				$ 9.08
23	297087400		Light,signal ,amber		Appelez-nous	-
25	297099002		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
28	297132700		Hinge,bottom ,rh				$ 47.87
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816221		Shield-light		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	216936800		Screw-hinge,12-24x.700 Hwh		Appelez-nous	-
42	297119700		Shelf,wire ,16.69x27.88 ,white ,(3)		Appelez-nous	-
44	216823300		Switch-rocker				$ 47.15
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 25.31
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 22.75
59	216826500		Basket		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
66	216713700		Buzzer,alarm				$ 74.60
68	08009560		Glide Basket (4)				$ 35.25
69	5305878546		Bumper Basket (2)				$ 7.23
72	297036902		Grille/kickplate,32`` ,white				$ 40.26
78	297013301		Housing-sensor		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
96	297087500		Light-signal,red		Appelez-nous	-
105	216926700		Shield				$ 42.06
105	216926600		Bracket,alarm, 2 Lights		Appelez-nous	-
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
169	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
42A	216458400		Shelf,14.50x27.88 ,(2)		Appelez-nous	-
59A	216486500		Stop-basket,(2)				$ 20.58
71A	5304416289		Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
F16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
F166	297282800		Electronic Cold Control,assy   (Replaces: 297142400)				$ 218.30
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
F77	5308037992		Sensor Assy				$ 167.58
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	216790600		Harness,alarm		Appelez-nous	-
NI	216795511		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	216502400		Grommet-shelf Mtg				$ 16.63

    View Diagram in Separate Window       Print Part List
