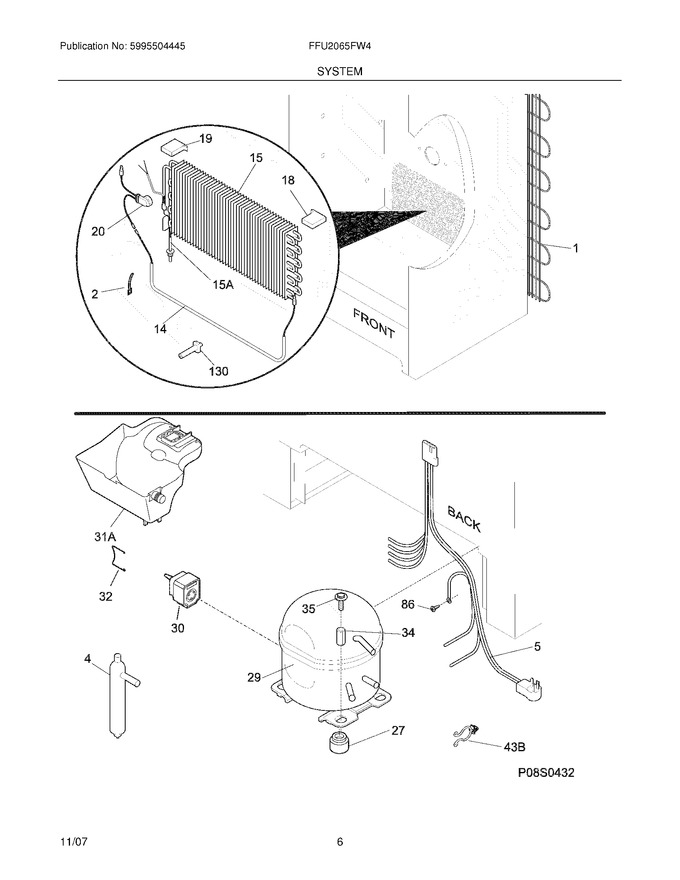

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	216987500		Drier-filter		Appelez-nous	-
14	216730700		Heater-defrost			Immediately	$ 116.44
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 27.52
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	297051001		Controller,compressor				$ 41.69
32	297051100		Clamp,elec Cont Mtg ,compressor		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5304460607		Screw,ind Hex Sems ,1/4-28 Unfx ,compressor		Appelez-nous	-
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
130	216486800		Support,evaporator Mtg		Appelez-nous	-
31A	216994102		Pan-drain   (Replaces: 216994100)				$ 30.53
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
F1	5300083897		Condenser				$ 538.37
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F15A	216783200		Heat Exchanger,suct/cap Tube			Immediately	$ 91.09
F29	5304478809		Compressor,w/grommets ,w/o Electricals   (Replaces: 297068201)			Immediately	$ 584.96
F5	297172600		Harness-main		Appelez-nous	-
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 68.68
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	297102800		Spacer-tube		Appelez-nous	-
NI	216502500		Sleeve,suction Line				$ 10.85
