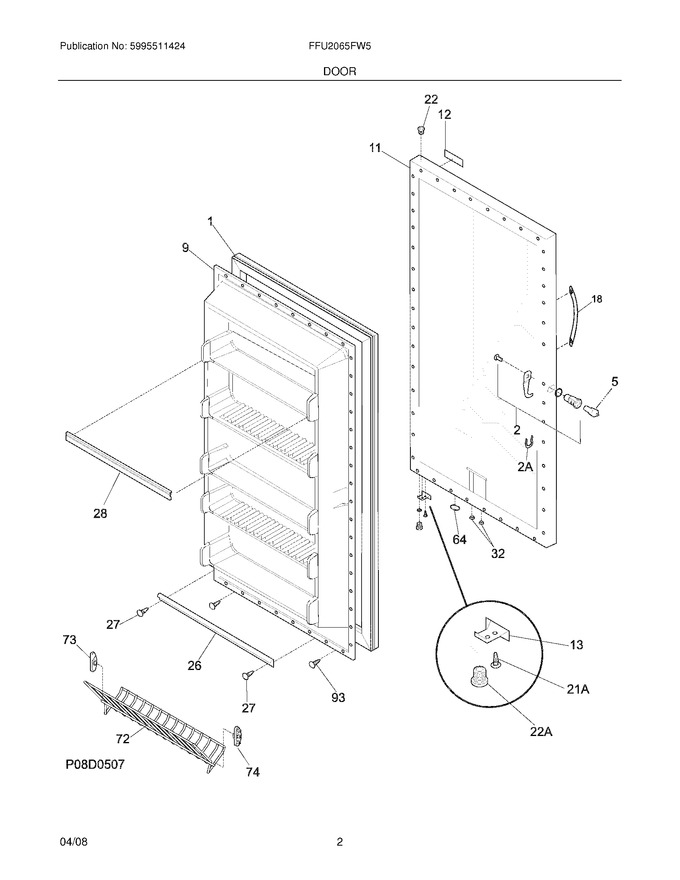

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507199		Gasket-door,white   (Replaces: 216522312)			Immediately	$ 159.60
5	297147700		Key,lock			Immediately	$ 7.57
9	216528113		Panel-inner Door,frzr				$ 231.76
11	297245407		Panel-outer Door,white		Appelez-nous	-
12	216947300		Nameplate				$ 15.84
13	297148400		Door Stop		Appelez-nous	-
18	216921200		Handle,white		Appelez-nous	-
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
28	216951600		Rack-door,(5)				$ 69.40
32	5309950074		Valve, Breather				$ 12.48
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	297118100		Shelf,tilt Out ,wire		Appelez-nous	-
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
21A	297197500		Screw,door Stop Mtg ,fh38-16x.750 ,p Twin				$ 14.46
22A	297006800		Bearing-hinge,btm, W/o`ring				$ 12.29
2A	297213300		Clip,spring				$ 10.17
F2	297318600		Lock Assy   (Replaces: 297213400)				$ 36.87
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	216932501		Nut,flange Locking ,handle				$ 6.10
