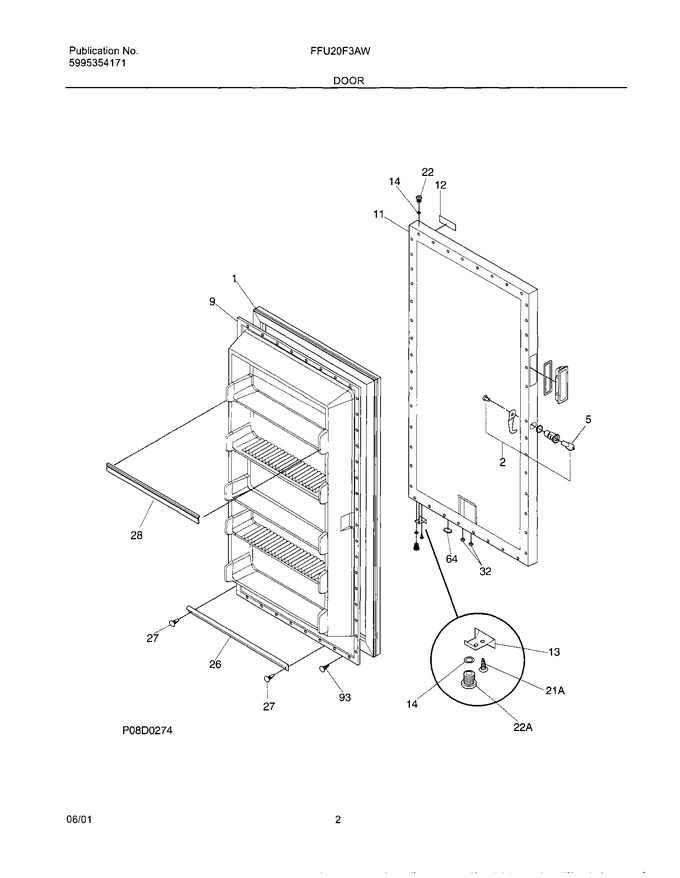

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507199 | Gasket-door,white (Replaces: 216522312) |
|
Immediately | $ 159.60 | ||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 5 | 297147700 | Key, Lock (Replaces: 216702900) |
|
Immediately | $ 7.57 | ||||
| 9 | 216528103 | Panel-inner Door,white |
|
$ 454.48 | |||||
| 11 | 216531201 | Panel-outer Door,white ,chrome Handle |
|
- | |||||
| 12 | 241808601 | Label-nameplate,white (Replaces: 240415201) |
|
$ 12.69 | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 21 | 08005520 | Screw-door Stop |
|
- | |||||
| 22 | 216443600 | Bearing |
|
$ 0.68 | |||||
| 22 | 297006800 | Bearing-hinge, Btm (Replaces: 216503200) |
|
$ 12.29 | |||||
| 26 | 216524201 | Gasket,secondary (Replaces: 216524200) |
|
$ 49.62 | |||||
| 27 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 28 | 216523102 | Rack-shelf,wide ,white |
|
- | |||||
| 32 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 64 | 216403700 | Plug-button, Base Door |
|
$ 58.12 | |||||
| 93 | 5303302760 | Screw |
|
$ 8.72 | |||||
| NI | 5303917276 | Insulation |
|
$ 330.91 |
