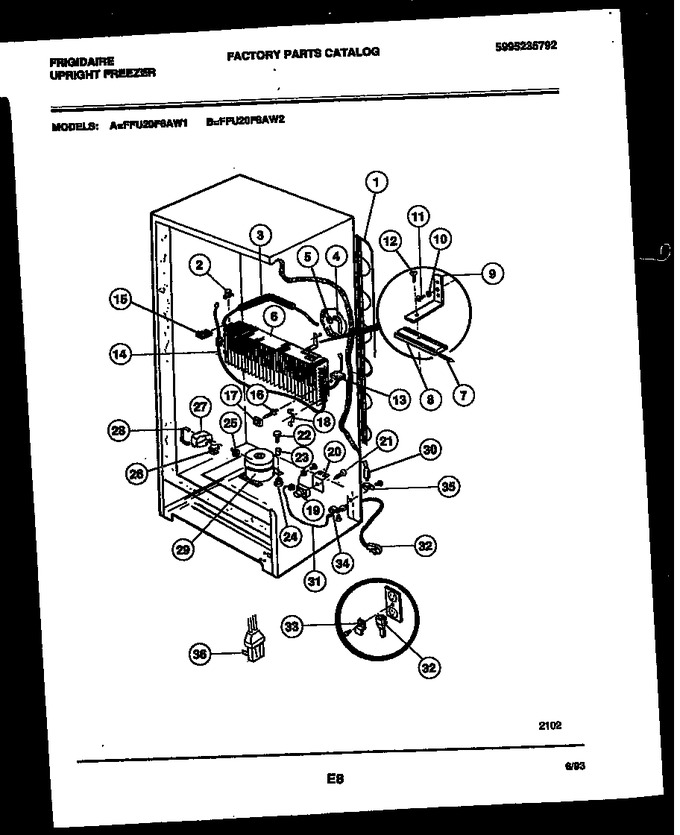

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5303016814		Switch, Termination		Appelez-nous	-
3	5303208489		Sleeve, Tubing (2)		Appelez-nous	-
4	09948773		Insulation				$ 12.60
5	06594629		Grommet		Appelez-nous	-
6	216195900		Evaporator				$ 246.91
7	216502500		Sleeve, Capillary Tube   (Replaces: 5303207297)				$ 10.85
8	05878567		Clamp, Capillary		Appelez-nous	-
9	06594601		Bracket, Control				$ 17.64
10	5300095480		Washer		Appelez-nous	-
11	216036600		Screw, Bracket		Appelez-nous	-
12	5300052943		Screw, Clamp				$ 5.30
13	06599531		Air Seal, Rh		Appelez-nous	-
14	5306599535		Heater, Defrost		Appelez-nous	-
15	3200707		Air Seal, Lh		Appelez-nous	-
16	06599544		Support, Evaporator		Appelez-nous	-
17	06599547		Spacer		Appelez-nous	-
18	06599536		Clip, Heater		Appelez-nous	-
19	5308037967		Timer, Defrost		Appelez-nous	-
20	08016580		Bracket, Timer		Appelez-nous	-
21	08037849		Screw, Bracket				$ 8.98
22	5303272328		Screw, Compressor				$ 10.34
23	5306594529		Sleeve-compressor				$ 10.34
24	216498900		Grommet (4)   (Replaces: 5308002681)				$ 13.01
25	216110400		Overload		Appelez-nous	-
26	216008900		Relay		Appelez-nous	-
27	5303006411		Cover, Terminal		Appelez-nous	-
28	215012000		Clamp, Cover				$ 2.63
29	216110300		Compressor, With Electricals		Appelez-nous	-
30	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
31	216092300		Harness W/ Power Cord		Appelez-nous	-
32	5300086065		Power Cord		Appelez-nous	-
33	08016777		Retainer, Power Cord (not Original Equipment. Customer		Appelez-nous	-
34	09950610		Clip		Appelez-nous	-
35	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
36	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
*79207	5303272332		Heat Exchanger		Appelez-nous	-
