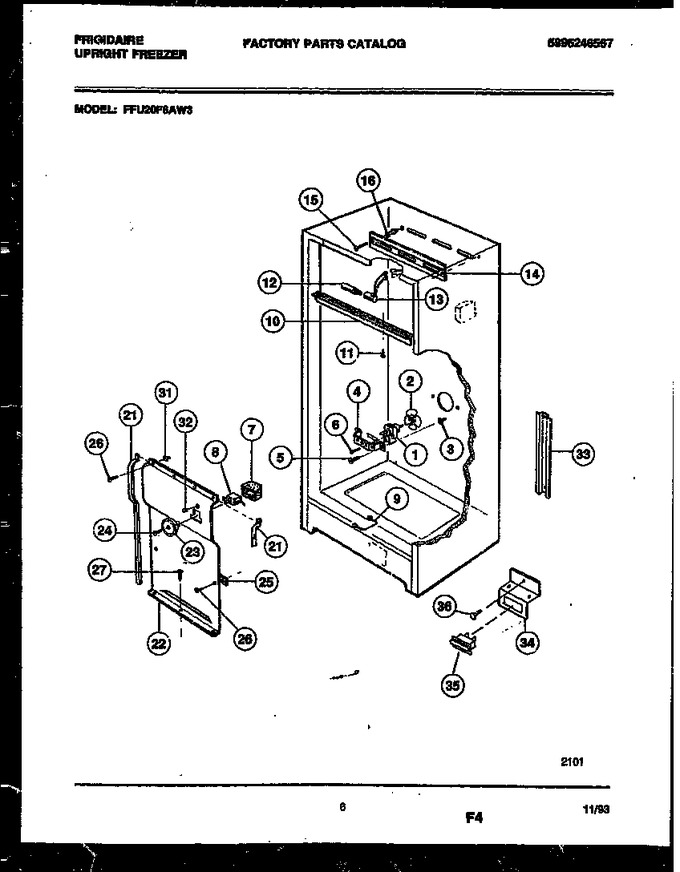

02 - Door Parts


03 - Cabinet Parts


04 - Interior Parts


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205519		Motor, Fan		Appelez-nous	-
2	3205520		Blade, Fan		Appelez-nous	-
3	09948978		Insert Nut		Appelez-nous	-
4	08013207		Bracket				$ 12.92
5	216858001		Screw, Bracket   (Replaces: 5303161215)			Immediately	$ 10.85
6	DE81-07046A		Screw, Motor To Bracket   (Replaces: 82473)				$ 147.24
7	5306599543		Cover, Control		Appelez-nous	-
8	216216000		Control, Temperature		Appelez-nous	-
9	5303207388		Ground Wire, Cabinet		Appelez-nous	-
10	08037418		Shield, Light		Appelez-nous	-
11	5303283898		Screw, Shield		Appelez-nous	-
12	5304517886		Bulb (25w 120v)   (Replaces: 216222700)			Immediately	$ 73.06
13	5300136117		Socket, Bulb				$ 52.46
14	5303288233		Baffle		Appelez-nous	-
15	216858001		Screw, Baffle   (Replaces: 5303161215)			Immediately	$ 10.85
16	08000456		Spacer, Baffle		Appelez-nous	-
21	216204901		Gasket, Cover				$ 9.08
22	216084200		Cover, Evaporator		Appelez-nous	-
23	216008801		Knob		Appelez-nous	-
24	09950853		Screw, Knob		Appelez-nous	-
25	06599547		Spacer		Appelez-nous	-
26	216858001		Screw, Cover (6)   (Replaces: 5303161215)			Immediately	$ 10.85
27	5303161233		Screw, Cover (3)		Appelez-nous	-
31	09948978		Insert Nut		Appelez-nous	-
32	5303208663		Plug, Indicator Control		Appelez-nous	-
33	216009000		Cover, Wiring		Appelez-nous	-
34	216009101		Bracket, Signal Light		Appelez-nous	-
35	06594648		Signal Light, Amber		Appelez-nous	-
36	08037851		Screw				$ 3.57

    View Diagram in Separate Window       Print Part List
