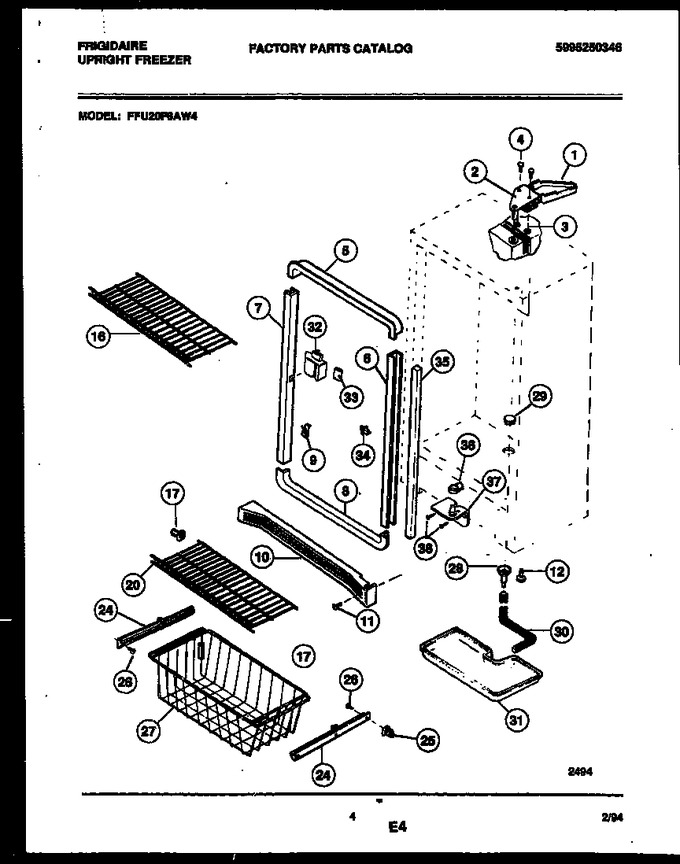

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303212912		Cover, Hinge-white		Appelez-nous	-
2	5303212935		Hinge, Top		Appelez-nous	-
3	5303294372		Nut Insert-hinge				$ 43.68
4	5303210386		Screw		Appelez-nous	-
5	216085900		Breaker, Top		Appelez-nous	-
6	216107501		Breaker, Hinge Side		Appelez-nous	-
7	216107601		Breaker, Lock Side		Appelez-nous	-
8	216085800		Breaker, Bottom		Appelez-nous	-
9	06594680		Clip, Breaker		Appelez-nous	-
10	216294405		Panel, Toe		Appelez-nous	-
11	5303302714		Fastener, Panel (2)		Appelez-nous	-
12	205363701		Leg Leveler-adj (4)		Appelez-nous	-
16	216266900		Shelf, Upper (3)		Appelez-nous	-
17	216261100		Shelf-support Front-rear (24)		Appelez-nous	-
20	216267000		Shelf-bottom (2)		Appelez-nous	-
24	297013500		Slide, Basket (4)   (Replaces: 5303212693)				$ 38.98
25	301036		Nut, Insert (6)   (Replaces: 3017666)				$ 15.90
26	216858001		Screw (6)   (Replaces: 5303161215)			Immediately	$ 10.85
27	216154400		Basket (2)		Appelez-nous	-
28	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
29	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
30	216269601		Hose-drain		Appelez-nous	-
31	5308016387		Pan, Drain		Appelez-nous	-
32	216013600		Catch, Lock		Appelez-nous	-
33	216013700		Clip, Lock Catch		Appelez-nous	-
34	5309918806		Switch, Light			Immediately	$ 21.97
35	09950831		Insulation		Appelez-nous	-
36	5303210424		Ramp, Door Closer		Appelez-nous	-
37	216247400		Hinge-bottom		Appelez-nous	-
38	154518001		Screw   (Replaces: 5303205738)				$ 10.54
27A	08009560		Glide, Basket (non-illustrated)				$ 35.25
27B	09948791		Stop, Basket		Appelez-nous	-
27C	5305878546		Bumper (non-illustrated)				$ 7.23
27D	5303288196		Sleeve, Plastic (non-illustrated)		Appelez-nous	-
