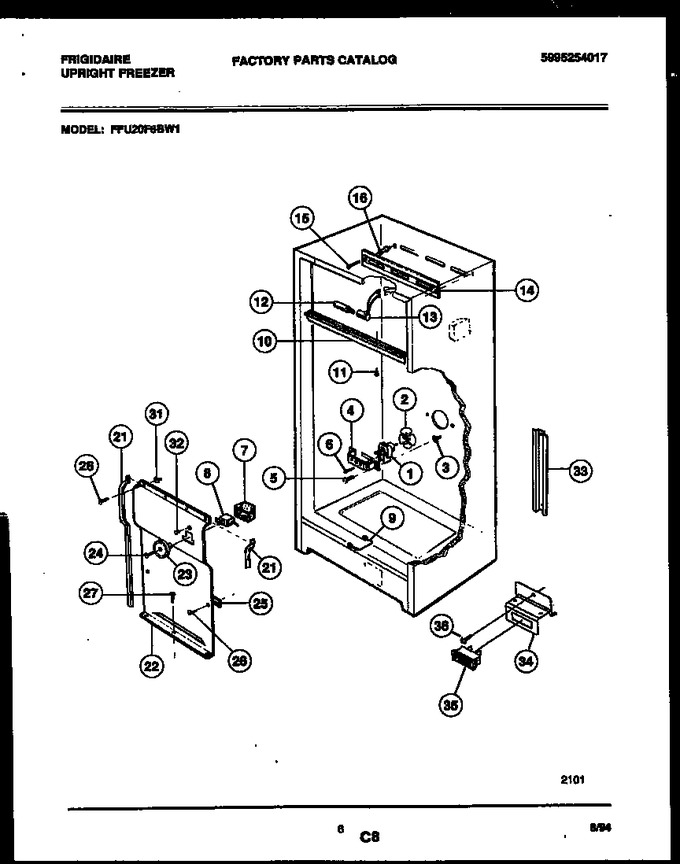

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205519 | Motor, Fan |
|
- | |||||
| 2 | 3205520 | Blade, Fan |
|
- | |||||
| 3 | 301036 | Insert-nut (Replaces: 3017666) |
|
$ 15.90 | |||||
| 4 | 08013207 | Bracket |
|
$ 12.92 | |||||
| 5 | 216858001 | Screw, Bracket (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 6 | DE81-07046A | Screw, Motor To Bracket (Replaces: 82473) |
|
$ 147.24 | |||||
| 7 | 216230300 | Cover, Control |
|
$ 49.88 | |||||
| 8 | 216303500 | Control-temperature |
|
- | |||||
| 9 | 06594651 | Wire, Ground |
|
- | |||||
| 10 | 08037418 | Shield, Light |
|
- | |||||
| 11 | 5303283898 | Screw Shield (2) |
|
- | |||||
| 12 | 5304517886 | Bulb (25w 120v) (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 13 | 5300136117 | Socket, Bulb |
|
$ 52.46 | |||||
| 14 | 5303288233 | Baffle |
|
- | |||||
| 15 | 216858001 | Screw, Baffle (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 16 | 08000456 | Spacer, Baffle |
|
- | |||||
| 21 | 216204901 | Gasket, Cover |
|
$ 9.08 | |||||
| 22 | 216084200 | Cover, Evaporator |
|
- | |||||
| 23 | 216008801 | Knob |
|
- | |||||
| 24 | 09950853 | Screw, Knob |
|
- | |||||
| 25 | 06599547 | Spacer |
|
- | |||||
| 26 | 131168200 | Screw-cover (4) |
|
Immediately | $ 14.18 | ||||
| 27 | 216283900 | Screw, Cover (2) |
|
- | |||||
| 31 | 09948978 | Insert Nut |
|
- | |||||
| 32 | 5303208663 | Plug, Indicator Control |
|
- | |||||
| 33 | 216318500 | Cover-wiring |
|
- | |||||
| 34 | 216252001 | Bracket, Signal Light |
|
- | |||||
| 35 | 06594648 | Signal Light, Amber |
|
- | |||||
| 36 | 08037851 | Screw |
|
$ 3.57 | |||||
| 33A | 216045101 | Cover-lid Harness (non-illustrated) |
|
- |
