View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Door

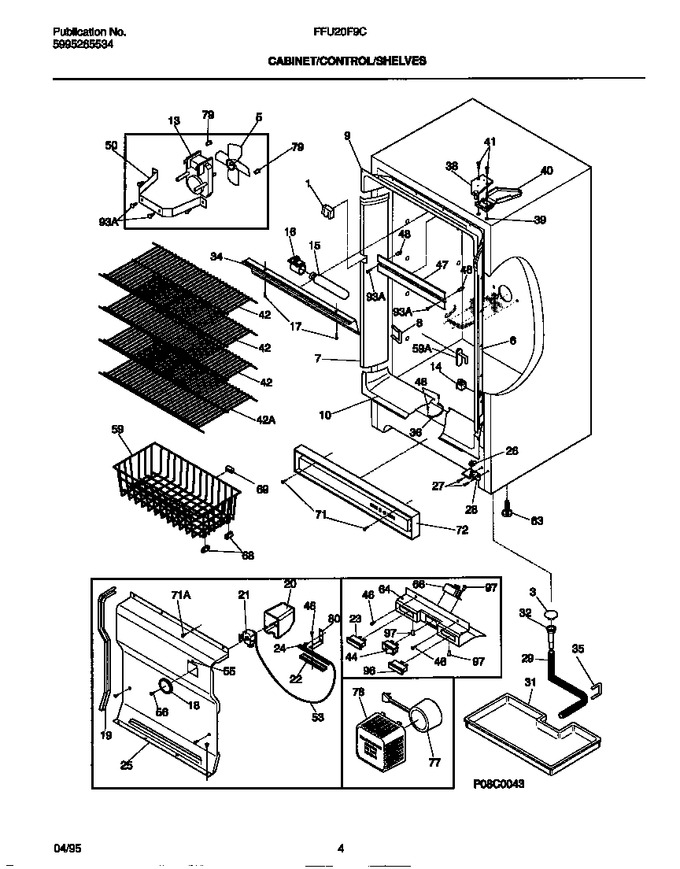

03 - Cabinet/control/shelves
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216013600 | Support, Lock |
|
- | |||||
| 3 | 216503100 | Screen, Drain (Replaces: 5308037403) |
|
$ 62.17 | |||||
| 5 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 6 | 216107501 | Breaker, Hinge Side |
|
- | |||||
| 7 | 216107601 | Breaker, Lock Side |
|
- | |||||
| 8 | 216013700 | Clip, U, Lock |
|
- | |||||
| 9 | 216085900 | Breaker, Top |
|
- | |||||
| 10 | 216085800 | Breaker, Bottom |
|
- | |||||
| 13 | 216346100 | Motor-evap Fan |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 16 | 5300136117 | Socket, Light/lamp |
|
$ 52.46 | |||||
| 17 | 5303283898 | Screw, Th Type Ab, 6-20 X 3/8, Shield-light |
|
- | |||||
| 18 | 216008801 | Knob-control |
|
- | |||||
| 19 | 216204900 | Gasket, Evap Cover |
|
$ 51.45 | |||||
| 20 | 216230300 | Cover, Temp Control |
|
$ 49.88 | |||||
| 21 | 216303600 | Control-temperature |
|
- | |||||
| 22 | 05878562 | Clamp |
|
- | |||||
| 23 | 5308002706 | Light-signal,amber |
|
$ 39.11 | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 25 | 216084200 | Cover, Evaporator |
|
- | |||||
| 26 | 5303271073 | Bearing-hinge, Closer Ramp |
|
$ 37.54 | |||||
| 27 | 154518001 | Screw-hinge, Cr, 1/4-20 X 1., Btm (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 28 | 216247400 | Hinge-bottom |
|
- | |||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313501) |
|
Immediately | $ 15.90 | ||||
| 31 | 5308016387 | Pan, Drain |
|
- | |||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 216312206 | Shield-light |
|
- | |||||
| 35 | 216273000 | Clip, Drain Hose |
|
$ 22.42 | |||||
| 36 | 06594651 | Wire, Ground |
|
- | |||||
| 38 | 5303925086 | Hinge-upper |
|
- | |||||
| 39 | 5303294372 | Nut Insert-hinge |
|
$ 43.68 | |||||
| 40 | 5303212912 | Cover, Hinge |
|
- | |||||
| 41 | 5303212937 | Screw-top Hinge |
|
- | |||||
| 42 | 216267000 | Shelf-bottom (2) |
|
- | |||||
| 42 | 216266900 | Shelf, Upper (3) |
|
- | |||||
| 44 | 5303017178 | Switch-rocker |
|
- | |||||
| 46 | 08037851 | Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness |
|
$ 3.57 | |||||
| 47 | 5303288233 | Baffle-plate |
|
- | |||||
| 48 | 08000456 | Spacer Baffle Plate |
|
- | |||||
| 50 | 08013207 | Bracket Fan Motor |
|
$ 12.92 | |||||
| 53 | 5303916855 | Insulator, Plastic Tubing, Temp Sensor |
|
$ 60.96 | |||||
| 55 | 5303208663 | Lens-indicator |
|
- | |||||
| 56 | 09950853 | Screw, Knob |
|
- | |||||
| 59 | 09948791 | Stop, Basket |
|
- | |||||
| 59 | 216274400 | Basket |
|
- | |||||
| 63 | 205363701 | Foot-adjustable |
|
- | |||||
| 64 | 08016369 | Bracket-alarm |
|
- | |||||
| 66 | 08016367 | Buzzer,alarm |
|
- | |||||
| 68 | 08009560 | Glide, Basket |
|
$ 35.25 | |||||
| 69 | 5305878546 | Bumper, Basket |
|
$ 7.23 | |||||
| 71 | 5303302714 | Screw, 8, 18 X 3/4, (2) |
|
- | |||||
| 71 | 08006547 | Screw |
|
- | |||||
| 72 | 216294418 | Grille/kickplate |
|
- | |||||
| 77 | 5308037992 | Sensor Assy |
|
$ 167.58 | |||||
| 78 | 3205249 | Housing-sensor |
|
- | |||||
| 79 | 301036 | Nut-insert (Replaces: 3017666) |
|
$ 15.90 | |||||
| 80 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 93 | 5303302760 | Screw |
|
$ 8.72 | |||||
| 96 | 08016772 | Light-signal,red |
|
- | |||||
| 97 | 5303308288 | Rivet-blind |
|
- | |||||
| *53561 | 216502500 | Sleeve, Suction Line (Replaces: 5303207297) |
|
$ 10.85 | |||||
| *53562 | 5303207388 | Wire, Ground, Fan Motor |
|
- | |||||
| *53563 | 5303212683 | Harness-sensor |
|
- | |||||
| *53564 | 5303286749 | Harness Wiring, Alarm |
|
- | |||||
| *53565 | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
