SELECT A DIAGRAM

01 - Cover


02 - Door

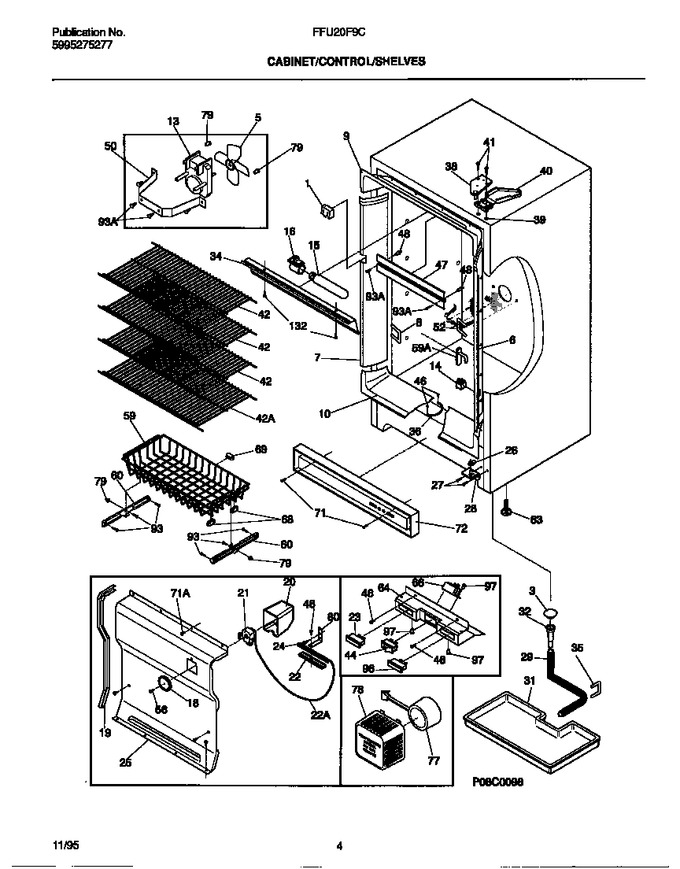

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216013600		Support, Lock		Appelez-nous	-
3	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216107501		Breaker, Hinge Side		Appelez-nous	-
7	216107601		Breaker, Lock Side		Appelez-nous	-
8	216013700		Clip, U, Lock		Appelez-nous	-
9	216085900		Breaker, Top		Appelez-nous	-
10	216085800		Breaker, Bottom		Appelez-nous	-
13	216346100		Motor-evap Fan		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	5300136117		Socket, Light/lamp				$ 52.46
18	216008801		Knob-control		Appelez-nous	-
19	216204901		Gasket-cover Evap				$ 9.08
20	216230300		Cover, Temp Control				$ 49.88
21	216303500		Control-temperature		Appelez-nous	-
22	05878562		Clamp		Appelez-nous	-
22	5303916855		Insulator, Plastic Tubing, Temp Sensor				$ 60.96
23	5308002706		Light-signal,amber				$ 39.11
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216084200		Cover, Evaporator		Appelez-nous	-
26	5303210424		Ramp, Door		Appelez-nous	-
27	154518001		Screw-hinge, Cr, 1/4-20 X 1., Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	5308016387		Pan, Drain		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216312206		Shield-light		Appelez-nous	-
35	06594637		Clip		Appelez-nous	-
36	06594651		Wire, Ground		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
42	216266900		Shelf, Upper (3)		Appelez-nous	-
42	216267000		Shelf-bottom (2)		Appelez-nous	-
44	5303017178		Switch-rocker		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	5303288233		Baffle-plate		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
52	08037401		Retainer, Wire, Breaker				$ 2.85
56	09950853		Screw, Knob		Appelez-nous	-
59	216154400		Basket		Appelez-nous	-
59	09948791		Stop, Basket		Appelez-nous	-
60	297013500		Slide-basket   (Replaces: 5303212693)				$ 38.98
63	205363701		Foot-adjustable		Appelez-nous	-
64	08016369		Bracket-alarm		Appelez-nous	-
66	08016367		Buzzer,alarm		Appelez-nous	-
68	08009560		Glide, Basket				$ 35.25
69	5305878546		Bumper, Basket				$ 7.23
71	216036601		Screw,quadrex   (Replaces: 216347500)				$ 13.65
72	216294418		Grille/kickplate		Appelez-nous	-
77	5308037992		Sensor Assy				$ 167.58
78	3205349		Housing-sensor		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
93	5303302760		Screw				$ 8.72
96	08016772		Light-signal,red		Appelez-nous	-
97	5303308288		Rivet-blind		Appelez-nous	-
*66881	5303207388		Wire, Ground, Fan Motor		Appelez-nous	-
*66882	5303212683		Harness-sensor		Appelez-nous	-
*66883	216502500		Sleeve, Suction Line   (Replaces: 5303207297)				$ 10.85
*66884	06594680		Clip, Breaker		Appelez-nous	-
*66885	5303286749		Harness Wiring, Alarm		Appelez-nous	-
*66886	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
