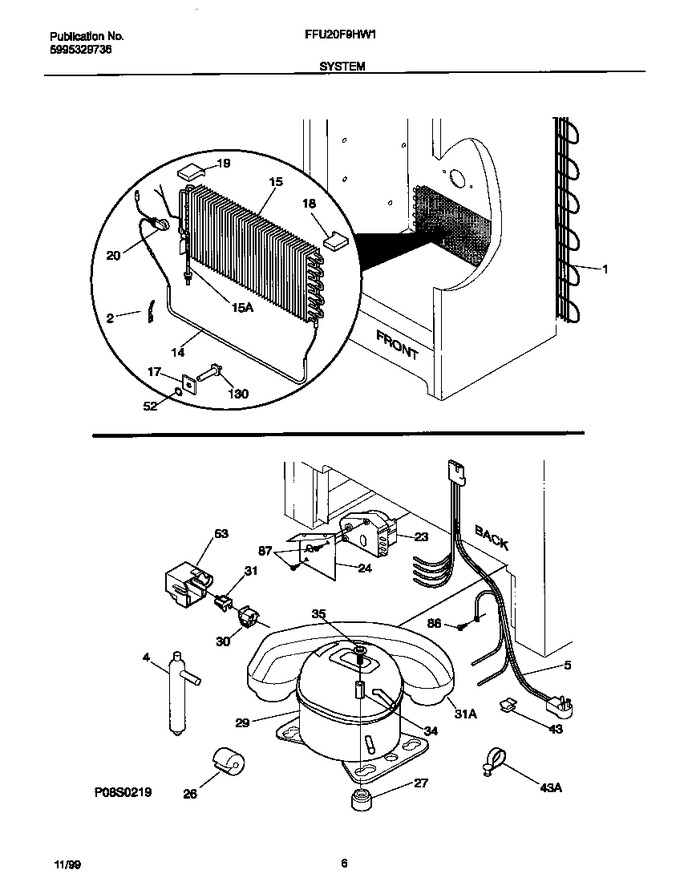

1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216660900		Harness-main		Appelez-nous	-
14	216608500		Heater-defrost				$ 161.22
15	216195900		Evaporator				$ 246.91
15	216385200		Heat Exchanger		Appelez-nous	-
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
18	06599531		Insulation Block, Rh		Appelez-nous	-
19	3017674		Insulation Block, Lh		Appelez-nous	-
20	5304404743		Thermostat-defrost		Appelez-nous	-
23	5304518034		Timer   (Replaces: 216517400)			Immediately	$ 57.55
24	08016580		Bracket		Appelez-nous	-
26	216511900		Spacer Tube, (3)		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	216639900		Compressor,w/o Electricals		Appelez-nous	-
30	216594300		Starter				$ 28.92
31	216100119		Overload Protector				$ 17.54
31	5304428401		Pan-drain   (Replaces: 5303925444)				$ 284.92
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
43	09950610		Clip		Appelez-nous	-
43	216629700		Clip-harness		Appelez-nous	-
52	08013198		Retainer, Spacer Evap		Appelez-nous	-
53	08006982		Cover-terminal		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
130	06599544		Support, Evaporator		Appelez-nous	-
*05003	5303006412		Strap, Cover Mtg		Appelez-nous	-
