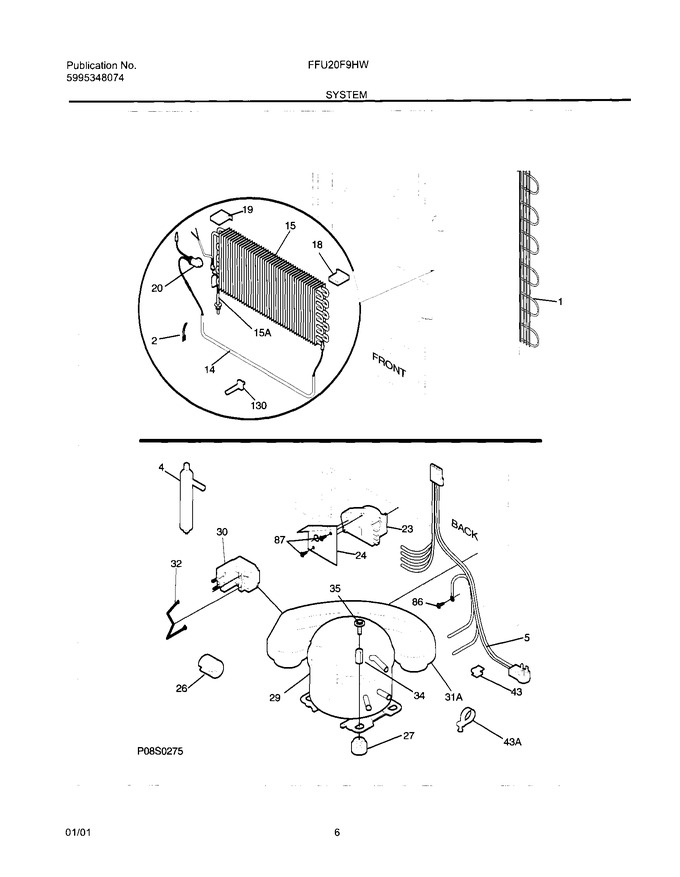

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216748000		Harness-electrical		Appelez-nous	-
14	216730700		Heater-defrost			Immediately	$ 116.44
15	297414901		Evaporator   (Replaces: 216737300)			Immediately	$ 171.34
15	216751000		Heat Exchanger		Appelez-nous	-
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	297216600		Thermostat-defrost   (Replaces: 216731000)			Immediately	$ 27.52
23	5304518034		Timer-defrost   (Replaces: 216744400)			Immediately	$ 57.55
24	08016580		Bracket		Appelez-nous	-
26	216511900		Spacer Tube, (3)		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	216639900		Compressor,w/o Electricals		Appelez-nous	-
30	216649309		Controller				$ 105.79
31	5304428401		Pan-drain   (Replaces: 5303925444)				$ 284.92
32	216731900		Clip-controller		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
43	09950610		Clip		Appelez-nous	-
43	216629700		Clip-harness		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
130	216730400		Support-evaporator		Appelez-nous	-
NI	216502500		Sleeve-tube Insert				$ 10.85
