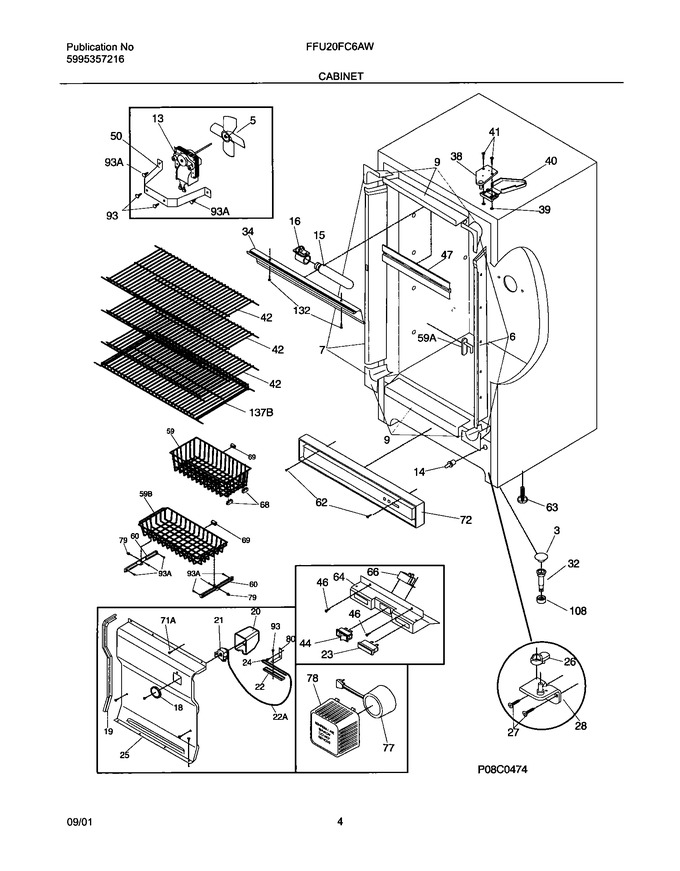

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
13	5304436055		Motor-fan   (Replaces: 216787000)				$ 184.37
18	216707200		Knob-control Cold				$ 44.10
19	216204901		Gasket-cover Evap				$ 9.08
20	216230300		Cover, Temp Control				$ 49.88
21	5304513033		Control- Temperature   (Replaces: 216715200)			Immediately	$ 83.14
22	05878562		Clamp		Appelez-nous	-
23	5308002706		Light-signal,amber				$ 39.11
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216737200		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216557600		Shield-light		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
42	216458500		Shelf,wire ,16.69x26.88 ,white ,(3)		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	297192903		Baffle-plate   (Replaces: 216661600)			Immediately	$ 25.31
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
59	216154400		Basket		Appelez-nous	-
60	297013500		Slide-basket   (Replaces: 5303212693)				$ 38.98
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
64	08016369		Bracket		Appelez-nous	-
66	216713700		Buzzer,alarm				$ 74.60
68	08009560		Glide, Basket				$ 35.25
69	5305878546		Bumper, Basket				$ 7.23
72	216591118		Grille/kickplate,32``				$ 96.44
78	3205349		Housing-sensor		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
108	216388600		Trap-drain				$ 2.36
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
59A	09948791		Stop, Basket		Appelez-nous	-
59B	216139400		Basket		Appelez-nous	-
71A	216036601		Screw,quadrex   (Replaces: 216347500)				$ 13.65
93A	5303302760		Screw				$ 8.72
F137	216546000		Shelf-fixed W/frame,white		Appelez-nous	-
F14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
F15	5304517886		Lamp,light Bulb ,40 W ,120 V   (Replaces: 216608600)			Immediately	$ 73.06
F16	216688600		Socket-light/lamp		Appelez-nous	-
F44	5303017178		Switch-rocker		Appelez-nous	-
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
F77	5303313631		Sensor Assy		Appelez-nous	-
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216802800		Owners Guide				$ 21.98
NI	216502400		Grommet-shelf Mtg				$ 16.63
