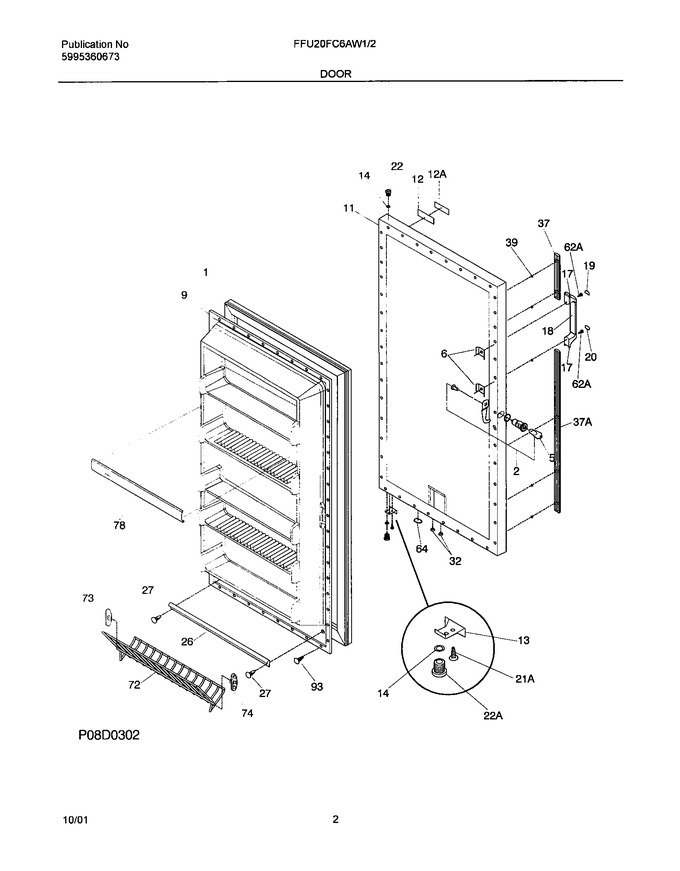

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507199		Gasket-door,white   (Replaces: 216522312)			Immediately	$ 159.60
2	5303925107		Lock Assy		Appelez-nous	-
6	218990001		Screw-anchor,8-18   (Replaces: 5300158222)				$ 16.30
9	216528103		Panel-inner Door,white				$ 454.48
11	5303925472		Panel-door,white		Appelez-nous	-
12	216816901		Nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
17	216087400		End Cap-white (2)				$ 43.81
18	216518000		Handle,center		Appelez-nous	-
19	216208900		Insert, Handle Top		Appelez-nous	-
20	216209001		Insert,handle Bottom		Appelez-nous	-
22	216443600		Bearing				$ 0.68
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel				$ 16.63
32	5309950074		Valve, Breather				$ 12.48
37	216211200		Trim-handle,upper		Appelez-nous	-
39	08016809		Fastener,door Strip		Appelez-nous	-
64	216403700		Plug-button,door Base				$ 58.12
72	216514100		Shelf,tilt Out ,wire				$ 123.80
73	216513900		End Cap,tiltout ,lh				$ 48.86
74	216514000		End Cap,tiltout ,rh				$ 48.05
78	216806100		Rack-door,contour ,(5)				$ 80.59
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
12A	216817100		Nameplate		Appelez-nous	-
21A	08005520		Screw-door Stop		Appelez-nous	-
22A	297006800		Bearing-hinge, Btm   (Replaces: 216503200)				$ 12.29
37A	216087600		Trim-handle,bottom		Appelez-nous	-
62A	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
