02 - Backguard


03 - Burner Parts


04 - Body Parts


05 - Body Parts


06 - Cooktop And Drawer Parts


07 - Door Parts

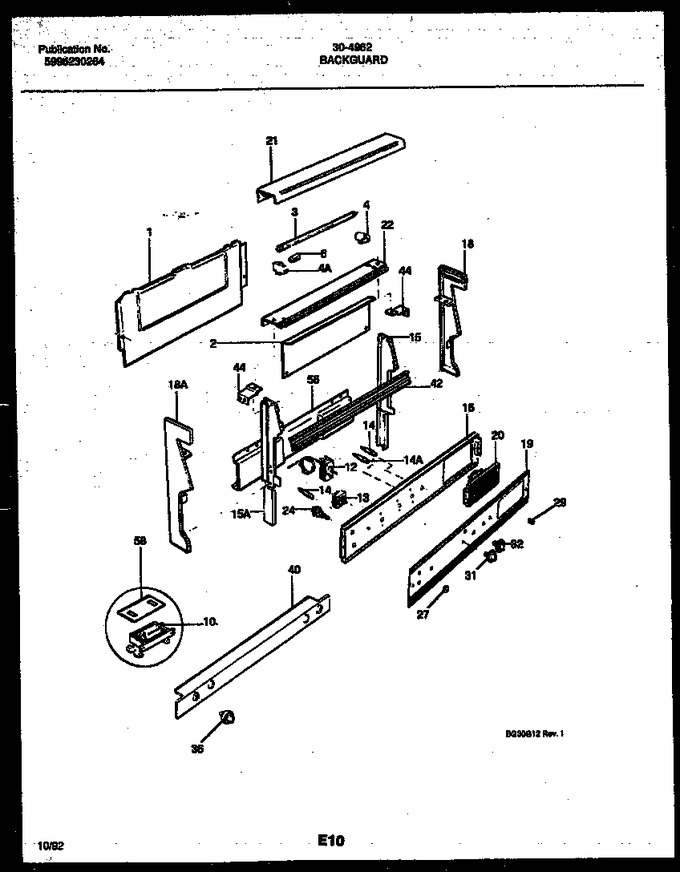

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316038801		Shield-backguard, Inner		Appelez-nous	-
3	3131275		Lamp-fluorescent, Bkgd				$ 49.40
4	316008200		Receptacle-fluor Lt, Rh		Appelez-nous	-
6	3206218		Starter-fluor Lt				$ 54.08
10	5303051115		Ballast-fluor Lt		Appelez-nous	-
12	5303271746		Thermostat-oven				$ 414.28
13	5303212678		Switch Selector		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
15	316023102		Channel-support, Backguard Rh		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
18	316015400		Cap-end, Rh				$ 43.58
19	316028302		Panel-control, Glass		Appelez-nous	-
20	3204766		Clock/timer, Radial 3 Stem		Appelez-nous	-
21	316015300		Trim-canopy/shield, Black		Appelez-nous	-
22	316038600		Support-receptacle		Appelez-nous	-
24	5303200479		Switch-light, Push, Oven				$ 7.04
27	5303011507		Bezel-switch				$ 21.47
29	3131472		Knob-clock (3)		Appelez-nous	-
31	5303286099		Knob-selector		Appelez-nous	-
32	5303286098		Knob - Thermostat		Appelez-nous	-
36	5303209616		Knob-top Valve, (4)		Appelez-nous	-
40	5303208492		Panel, Manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	316038501		Bracket-backguard, (2)		Appelez-nous	-
56	316014601		Deflector-flue		Appelez-nous	-
58	316043400		Insulator-ballast, (2)		Appelez-nous	-
14A	3201728		Light/lamp, Indicator, Red, Lock, Lock		Appelez-nous	-
15A	316023103		Channel-support, Backguard Lh		Appelez-nous	-
15A	5303288574		Screw, Plas. Tr Hd Sqdr, 8-10 X 3/8, (6)		Appelez-nous	-
18A	316015401		Cap-end, Lh		Appelez-nous	-
19A	5303272836		Clip-backguard (non-illustrated)		Appelez-nous	-
4A	316008201		Receptacle-fluor Lt, Lh		Appelez-nous	-
