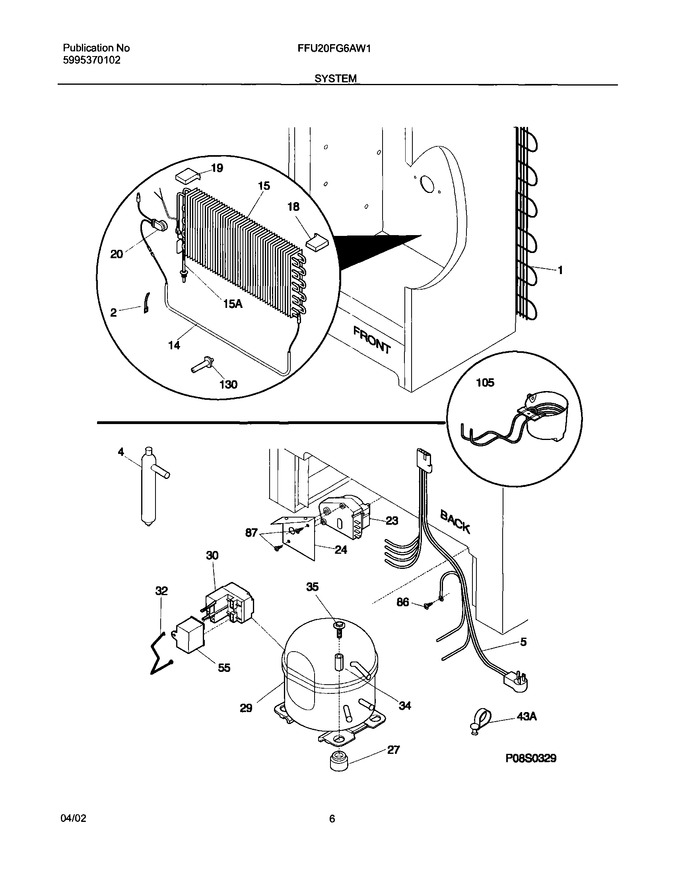

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 18 | 216727600 | Insulator-evap,styrofoam |
|
- | |||||
| 19 | 216727700 | Insulator-evap,styrofoam |
|
- | |||||
| 20 | 297216600 | Thermostat-defrost (Replaces: 216731000) |
|
Immediately | $ 27.52 | ||||
| 24 | 08016580 | Bracket |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 32 | 218740800 | Clamp,elec Cont Mtg ,compressor |
|
$ 65.21 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5303272328 | Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor |
|
$ 10.34 | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 87 | 08037849 | Screw |
|
$ 8.98 | |||||
| 105 | 216999900 | Cup-drain (Replaces: 216854000) |
|
$ 169.39 | |||||
| 130 | 216486800 | Support-evaporator |
|
- | |||||
| 15A | 216783200 | Heat Exchanger |
|
Immediately | $ 91.09 | ||||
| 43A | 216629700 | Clip-harness |
|
- | |||||
| F1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| F14 | 216730700 | Heater-defrost |
|
Immediately | $ 116.44 | ||||
| F15 | 297414901 | Evaporator (Replaces: 216737300) |
|
Immediately | $ 171.34 | ||||
| F23 | 5304518034 | Timer-defrost (Replaces: 216744500) |
|
Immediately | $ 57.55 | ||||
| F29 | 5304478809 | Compressor,w/o Electricals (Replaces: 216788600) |
|
Immediately | $ 584.96 | ||||
| F30 | 216649303 | Controller |
|
- | |||||
| F5 | 216790500 | Harness,electrical |
|
- | |||||
| F55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909901) |
|
Immediately | $ 35.38 | ||||
| NI | 5303298960 | Spacer-tube,.75`` |
|
- |
