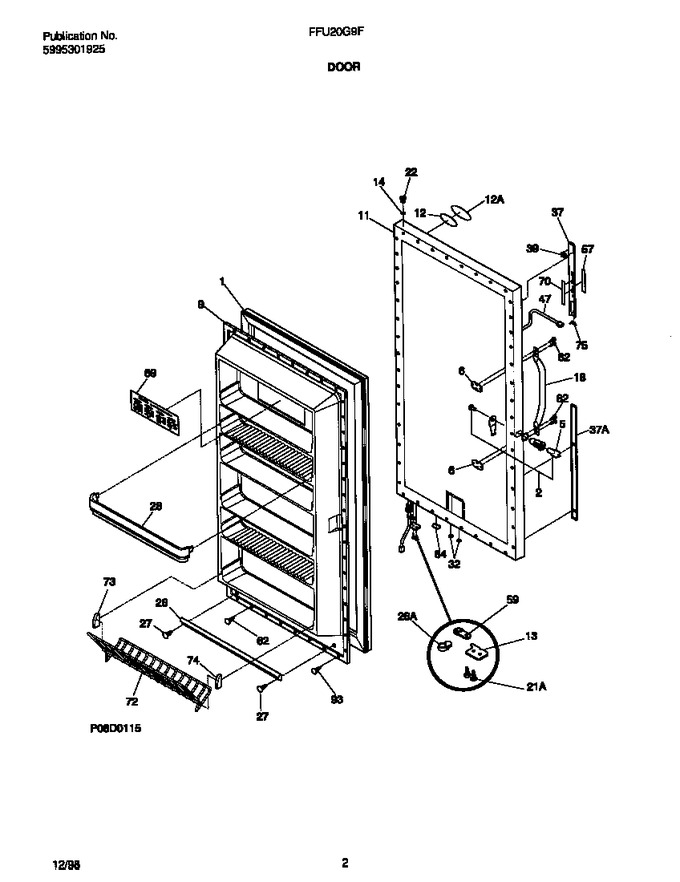

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	32062615		Gasket-door		Appelez-nous	-
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216485700		Panel-inner Door,white		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	215008604		Label-nameplate,white		Appelez-nous	-
13	5303271076		Door Stop				$ 16.30
14	5303313518		Washer, Sealing		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
21	5303271077		Screw,flat Head ,1/4-20 ,door Stop/hng				$ 8.82
22	216443600		Bearing				$ 0.68
26	216470700		Bearing-hinge,closer Ramp		Appelez-nous	-
26	06594681		Gasket, Secondary		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
28	216484300		Rack-shelf, White, (4)		Appelez-nous	-
32	5309950074		Valve-breather, Door				$ 12.48
37	215867061		Trim-handle,white ,lower ,w/dec Gold Band,and Snap Locks		Appelez-nous	-
37	216531800		Trim-door Handle,top		Appelez-nous	-
39	215782300		Lock-handle Trim,snap-in				$ 34.49
47	216491600		Harness-wire,elec ,door		Appelez-nous	-
57	216484000		Overlay		Appelez-nous	-
59	5303271072		Bearing-door,closer Ramp		Appelez-nous	-
62	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
64	216403700		Plug-button, Base Door				$ 58.12
69	216485600		Label-frozen Food		Appelez-nous	-
70	216269700		Electronics,low Voltage		Appelez-nous	-
72	216480300		Shelf,tilt Out ,wire		Appelez-nous	-
73	216480100		Support L.h.		Appelez-nous	-
74	21648020 5		Support R.h.		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*31280	5303917276		Insulation				$ 330.91
