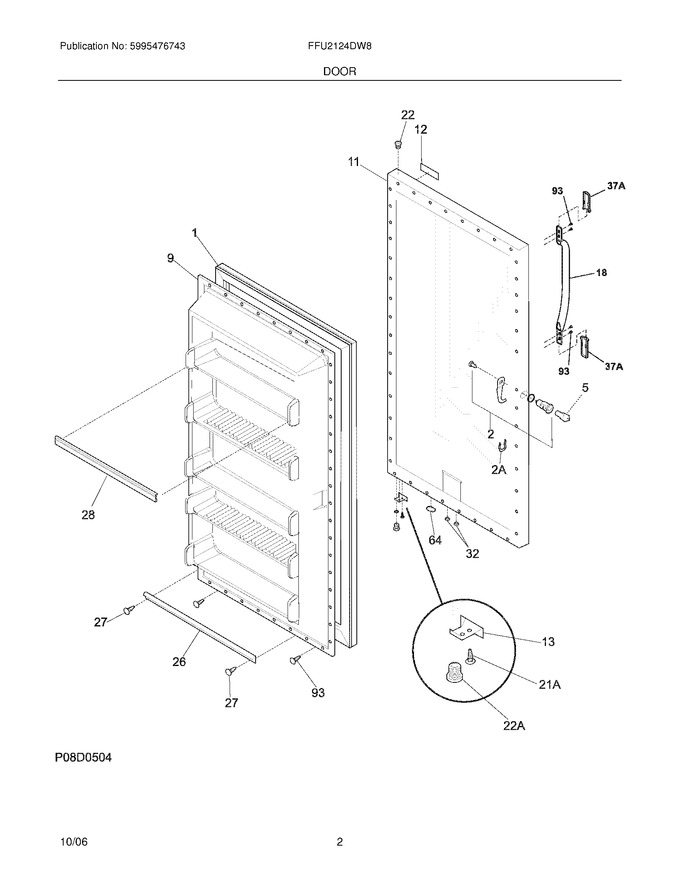

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507199 | Gasket-door,white (Replaces: 216522312) |
|
Immediately | $ 159.60 | ||||
| 9 | 216528113 | Panel-inner Door,frzr |
|
$ 231.76 | |||||
| 11 | 216531218 | Panel-outer Door,white |
|
- | |||||
| 12 | 216892802 | Nameplate |
|
$ 6.15 | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 18 | 297311201 | Handle-door, White (Replaces: 218762701) |
|
Immediately | $ 80.60 | ||||
| 22 | 216970802 | Bearing,hinge W/o`ring ,top (Replaces: 216970800) |
|
Immediately | $ 10.85 | ||||
| 26 | 216524201 | Gasket,secondary (Replaces: 216524200) |
|
$ 49.62 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 28 | 216951600 | Rack-door,(6) |
|
$ 69.40 | |||||
| 32 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 58.12 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 21A | 08005520 | Screw,door Stop Mtg ,4.0 X 0.7-19.7 ,flat Hd,metric |
|
- | |||||
| 22A | 297006800 | Bearing-hinge,btm, W/o`ring |
|
$ 12.29 | |||||
| 2A | 297090900 | Clip,spring |
|
$ 10.85 | |||||
| 37A | 218676001 | Band-decorative,chrome ,handle Trim |
|
$ 36.17 | |||||
| 37A | 215870619 | Trim-handle, 2.47``, White, W/chrome Band |
|
$ 72.72 | |||||
| F2 | 297090000 | Lock Assy |
|
- | |||||
| F5 | 297147700 | Key, Lock (Replaces: 216702900) |
|
Immediately | $ 7.57 | ||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 |
