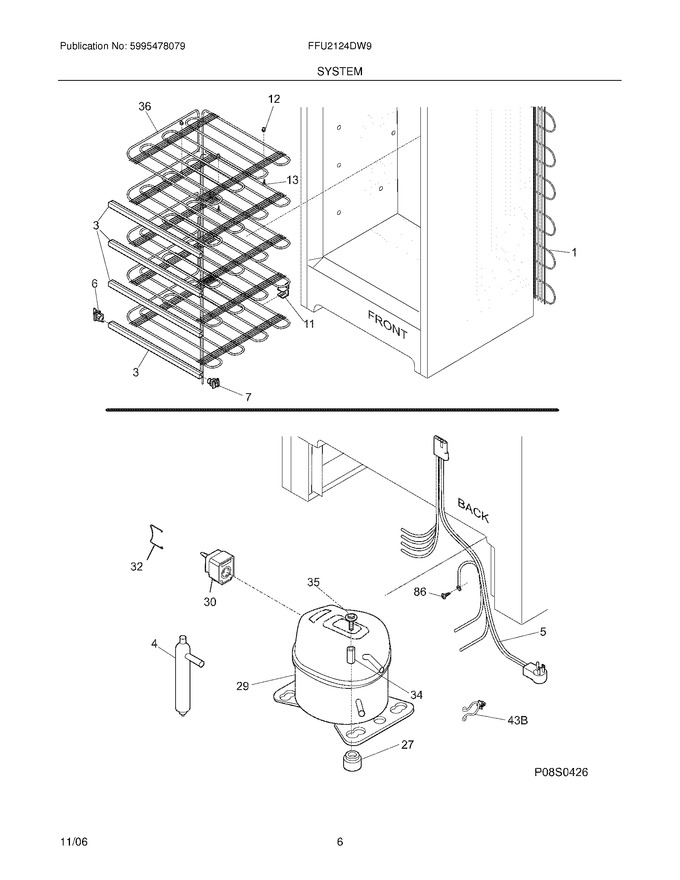

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304509723		Trim-shelf,evaporator   (Replaces: 216847806)				$ 31.81
6	297001600		Support-shelf,front Lh				$ 18.08
7	297001500		Support-shelf,front Rh				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	297051000		Controller,compressor				$ 39.46
32	297051100		Clamp,elec Cont Mtg ,compressor		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
F1	5300083897		Condenser				$ 538.37
F29	5304478809		Compressor,kit W/grommets ,& Welded Clip   (Replaces: 297048100)			Immediately	$ 584.96
F36	5304506302		Evaporator,tubing Assy ,white   (Replaces: 216939800)				$ 324.59
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297021400		Harness-main				$ 73.08
NI	216502500		Sleeve,suction Line				$ 10.85
NI	297102800		Spacer-tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
