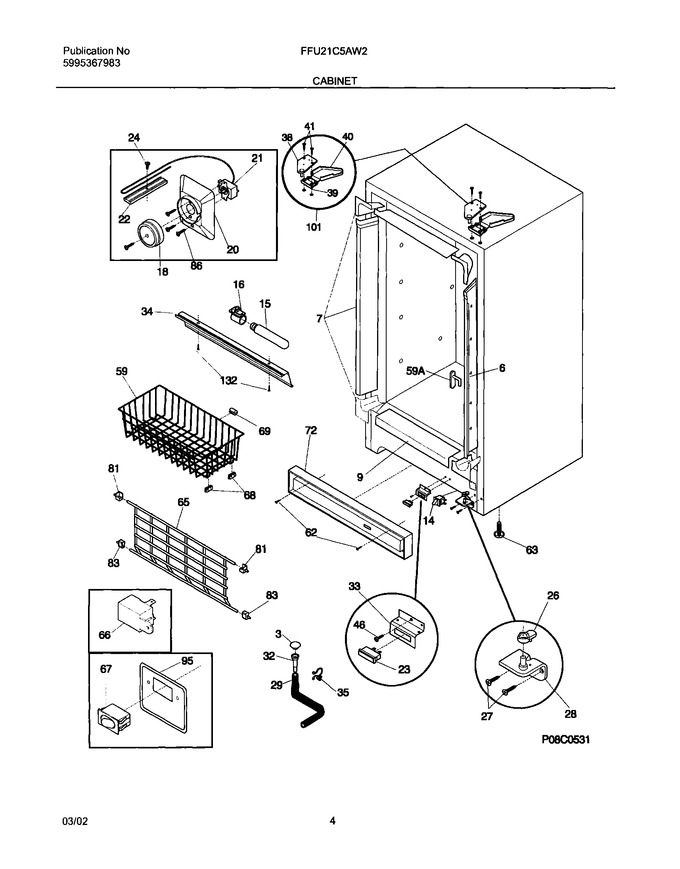

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
14	216822900		Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
18	216707200		Knob-control Cold				$ 44.10
20	216707300		Cover-control Housing		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
23	216511700		Light-signal		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
33	216511600		Bracket,signal Light		Appelez-nous	-
34	216816200		Shield-light				$ 70.72
35	216273000		Clip, Drain Hose				$ 22.42
38	216808900		Hinge-upper				$ 92.87
39	5303294372		Nut Insert-hinge				$ 43.68
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	241710601		Screw   (Replaces: 5303001479)				$ 13.46
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
59	216157200		Basket				$ 102.32
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
65	216443500		Drop Front		Appelez-nous	-
66	216713700		Buzzer,alarm				$ 74.60
68	08009560		Glide, Basket				$ 35.25
69	5305878546		Bumper, Basket				$ 7.23
72	216511500		Grille/kickplate		Appelez-nous	-
81	216571000		Support-drop Front,top				$ 33.55
83	216571100		Support-drop Front,btm		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
95	216655700		Label-rapid Freeze		Appelez-nous	-
101	216835200		Kit-top Hinge				$ 50.99
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
59A	216486500		Stop-basket				$ 20.58
F16	216688600		Socket-light/lamp		Appelez-nous	-
F21	216788200		Control-temperature		Appelez-nous	-
F67	216823200		Switch-rocker,spst		Appelez-nous	-
NI	5303311565		Clip-cable				$ 2.10
NI	216663900		Buzzer,alarm		Appelez-nous	-
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216205400		Washer,signal Light		Appelez-nous	-
NI	216802800		Owners Guide				$ 21.98
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	216511601		Bracket,signal Light		Appelez-nous	-
