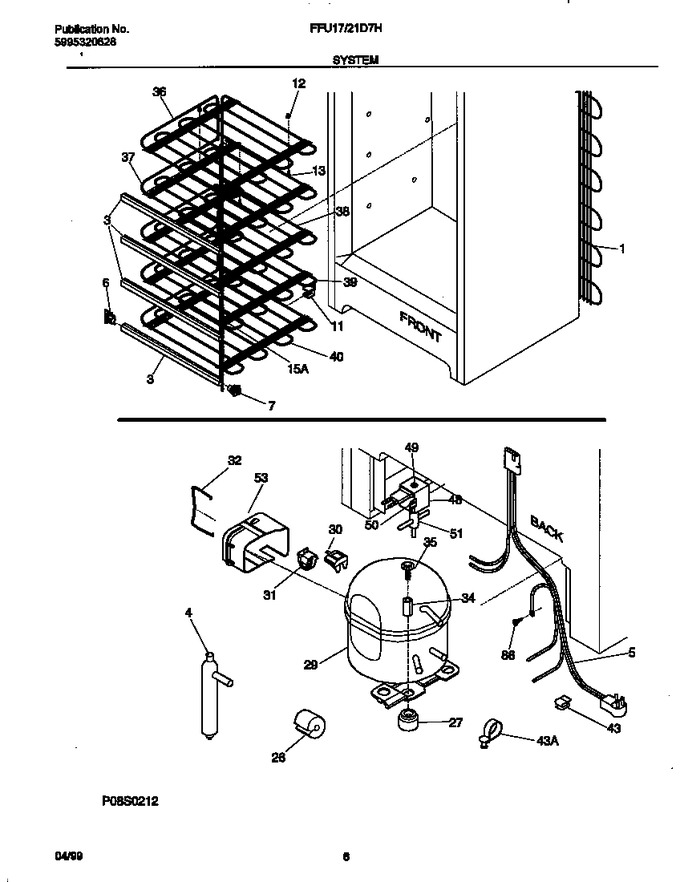

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
3	216444800		Trim-shelf,decorated		Appelez-nous	-
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216664000		Harness-main		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
15	216468300		Heat Exchanger				$ 237.67
26	216511900		Spacer Tube, (3)		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	5304511983		Compressor,service   (Replaces: 216639700)				$ 671.86
30	216594300		Starter				$ 28.92
31	216100115		Overload Protector				$ 23.11
32	5303006412		Strap, Cover Mtg		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
36	5304506302		Grid-top Evaporator   (Replaces: 216070900)				$ 324.59
37	216160100		Shelf-top Evaporator		Appelez-nous	-
38	216071100		Shelf-middle Evaporator		Appelez-nous	-
39	5304506302		Shelf-third Evaporator   (Replaces: 216071200)				$ 324.59
40	5304506302		Shelf-bottom Evaporator   (Replaces: 216071300)				$ 324.59
43	09950610		Clip		Appelez-nous	-
43	216629700		Clip-harness		Appelez-nous	-
48	3201514		Solenoid		Appelez-nous	-
49	3201513		Clip, Valve		Appelez-nous	-
50	216533400		Wire-ground,solenoid		Appelez-nous	-
51	5303210219		Valve-formed		Appelez-nous	-
53	08006982		Cover-terminal		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
*62365	5303208622		Clip Grounding		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
