01 - Cover

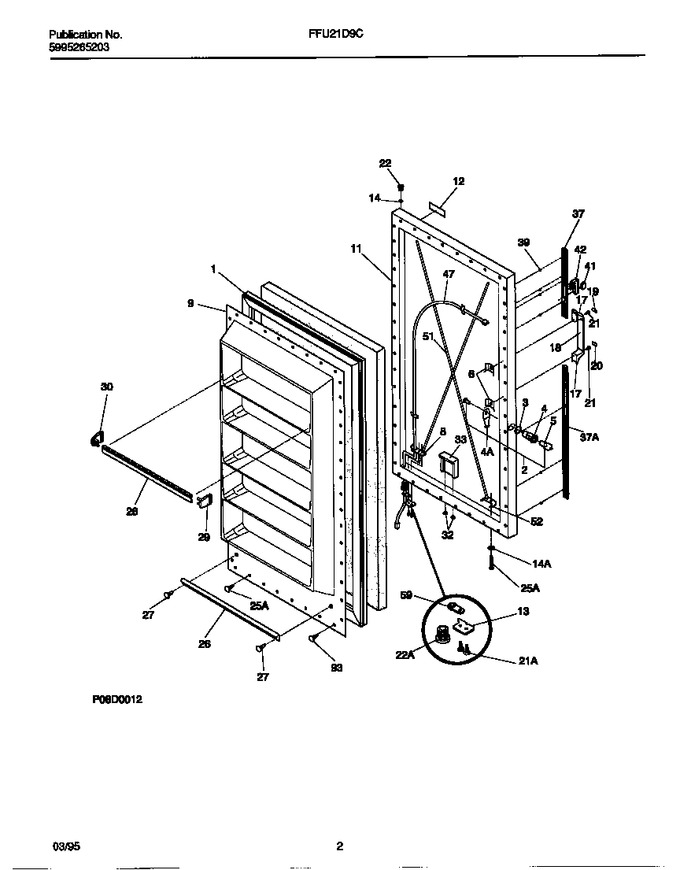

02 - Door
03 - Cabinet
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206261 | Gasket-door (white) |
|
$ 254.52 | |||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 3 | 5300114366 | Washer |
|
- | |||||
| 4 | 5303283905 | Cylinder, Lock |
|
- | |||||
| 4 | 216013800 | Hook, Lock |
|
- | |||||
| 5 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 6 | 3202683 | Nut-anchor, Door Hdl Screw |
|
- | |||||
| 8 | 5300091170 | Reinforcement, Door Stop |
|
- | |||||
| 9 | 216048814 | Panel-inner Door, White |
|
- | |||||
| 11 | 216011613 | Panel-outer Door, White |
|
- | |||||
| 12 | 216364004 | Bezel-nameplate |
|
- | |||||
| 13 | 5303271076 | Door Stop |
|
$ 16.30 | |||||
| 14 | 5303301500 | Washer, Sealing |
|
- | |||||
| 14 | 5303307087 | Washer |
|
- | |||||
| 17 | 216087400 | End Cap, White |
|
$ 43.81 | |||||
| 18 | 216087700 | Handle, White |
|
- | |||||
| 19 | 216208900 | Insert, Handle Top |
|
- | |||||
| 20 | 216209000 | Insert-handle,bottom |
|
- | |||||
| 21 | 5303271077 | Screw,flat Head ,1/4-20 ,door Stop/hng |
|
$ 8.82 | |||||
| 21 | 5303302714 | Screw, 8, 18 X 3/4, (2) |
|
- | |||||
| 22 | 5303297490 | Bearing, Hinge |
|
- | |||||
| 22 | 5303210403 | Bearing |
|
- | |||||
| 25 | 5303302716 | Screw, Hex Sems Blunt, 10-16 X 2.0, |
|
- | |||||
| 26 | 5308016356 | Gasket, Secondary |
|
- | |||||
| 27 | 5303212828 | Screw, Panel |
|
$ 16.63 | |||||
| 28 | 216371700 | Rack-shelf, Wide, White |
|
- | |||||
| 29 | 216340000 | End Cap, Wide, White, Rh |
|
- | |||||
| 30 | 216340100 | End Cap, Wide, White, Lh |
|
- | |||||
| 32 | 5309950074 | Breather-air Duct, Door |
|
$ 12.48 | |||||
| 33 | 5303212700 | Air Duct |
|
- | |||||
| 37 | 216087500 | Trim-handle, White, Top |
|
- | |||||
| 37 | 216087600 | Trim-handle,bottom |
|
- | |||||
| 39 | 08016809 | Fastener,door Strip |
|
- | |||||
| 41 | 216371900 | Lens-food Care Monitor |
|
- | |||||
| 42 | 216083700 | Monitor, Food Care |
|
- | |||||
| 47 | 216290400 | Harness-wire, Electrical, Door |
|
- | |||||
| 50 | 216271800 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 51 | 08037981 | Wire, Door Adjustmnt |
|
- | |||||
| 52 | 05879859 | Bracket |
|
- | |||||
| 59 | 5303271072 | Bearing-door,closer Ramp |
|
- | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| *50280 | 216315100 | Nameplate |
|
- |
