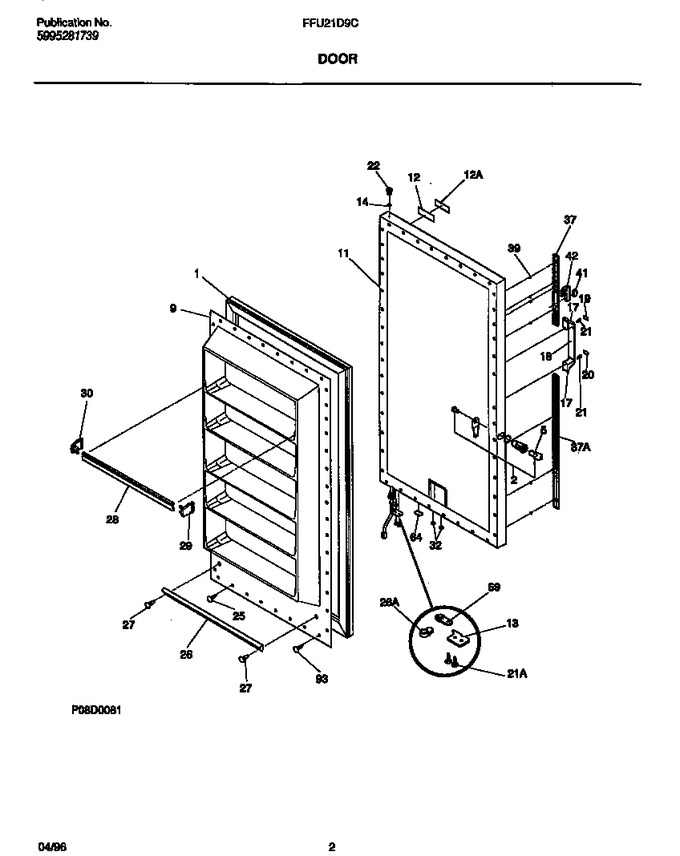

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206261		Gasket Door				$ 254.52
2	5303925107		Lock Assembly		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
6	218990001		Scew-anchor, 8-18   (Replaces: 5300158222)				$ 16.30
9	216048814		Panel-inner Door, White		Appelez-nous	-
11	216413314		Panel-outer Door, Elect, Foam Insul, White		Appelez-nous	-
12	216315100		Nameplate		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
13	5303271076		Door Stop				$ 16.30
14	5303313518		Washer, Sealing		Appelez-nous	-
18	216087700		Handle-center-white		Appelez-nous	-
19	216208900		Insert, Handle Top		Appelez-nous	-
20	216209000		Insert-handle-btm		Appelez-nous	-
21	5303271077		Screw,flat Head ,1/4-20 ,door Stop/hng				$ 8.82
21	131420300		Screw				$ 13.46
22	216443600		Bearing				$ 0.68
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	06594681		Gasket, Secondary		Appelez-nous	-
26	5303271073		Bearing-hinge, Closer Ramp				$ 37.54
27	5303212828		Screw, Panel				$ 16.63
28	216371700		Rack-shelf, Wide, White		Appelez-nous	-
29	216334300		End Cap-wide, Lh		Appelez-nous	-
30	216334200		End Cap-wide, Rh				$ 39.80
32	216390000		Breather-air Duct, Door		Appelez-nous	-
37	216087600		Trim, Bottom		Appelez-nous	-
37	216180600		Trim-top		Appelez-nous	-
39	08016809		Clip-pin Fastener		Appelez-nous	-
41	216371900		Lens-food Care Monitor		Appelez-nous	-
42	216083700		Monitor, Food Care		Appelez-nous	-
59	5303271072		Bearing-door,closer Ramp		Appelez-nous	-
64	216403700		Plug-button, Base Door				$ 58.12
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*04760	5303917276		Insulation				$ 330.91
