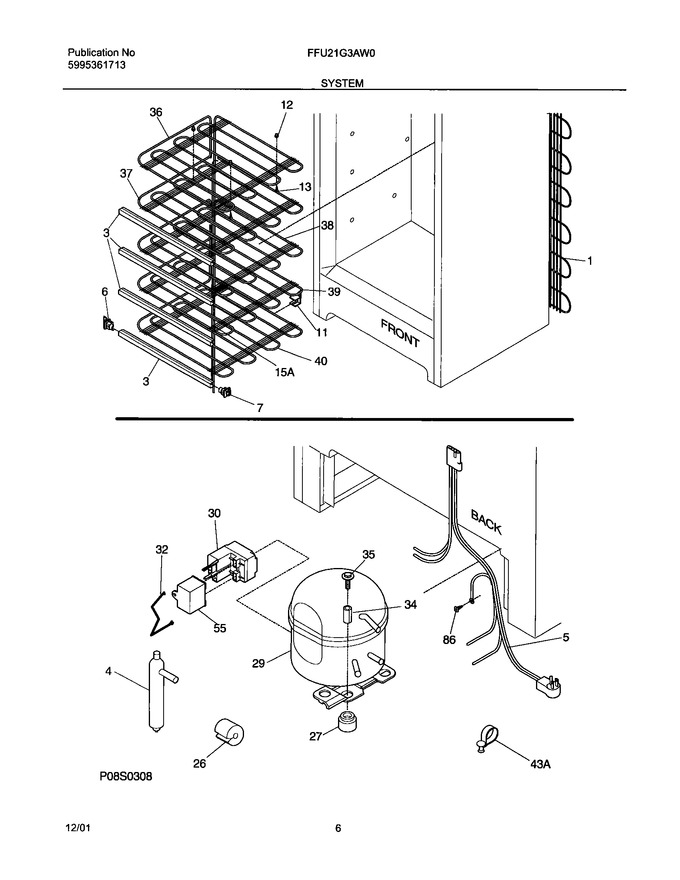

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304509723		Trim-shelf,decorated ,evap   (Replaces: 216743100)				$ 31.81
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
26	216511900		Spacer Tube, (3)		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
30	5304491583		Controller   (Replaces: 216649311)				$ 99.23
32	218740800		Clamp,elec Cont Mtg ,compressor				$ 65.21
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
43A	216629700		Clip-harness		Appelez-nous	-
F1	5300083897		Condenser				$ 538.37
F15A	216401500		Heat Exchanger				$ 294.47
F29	216788300		Compressor,w/o Electricals		Appelez-nous	-
F36	5304506302		Grid-top Evaporator   (Replaces: 216070900)				$ 324.59
F37	5304506302		Shelf-top Evaporator   (Replaces: 216071000)				$ 324.59
F38	216071100		Shelf-middle Evaporator		Appelez-nous	-
F39	5304506302		Shelf-third Evaporator   (Replaces: 216071200)				$ 324.59
F40	5304506302		Shelf-bottom Evaporator   (Replaces: 216071300)				$ 324.59
F5	216809900		Harness,electrical		Appelez-nous	-
F55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
NI	216502500		Sleeve-tube Insert				$ 10.85
