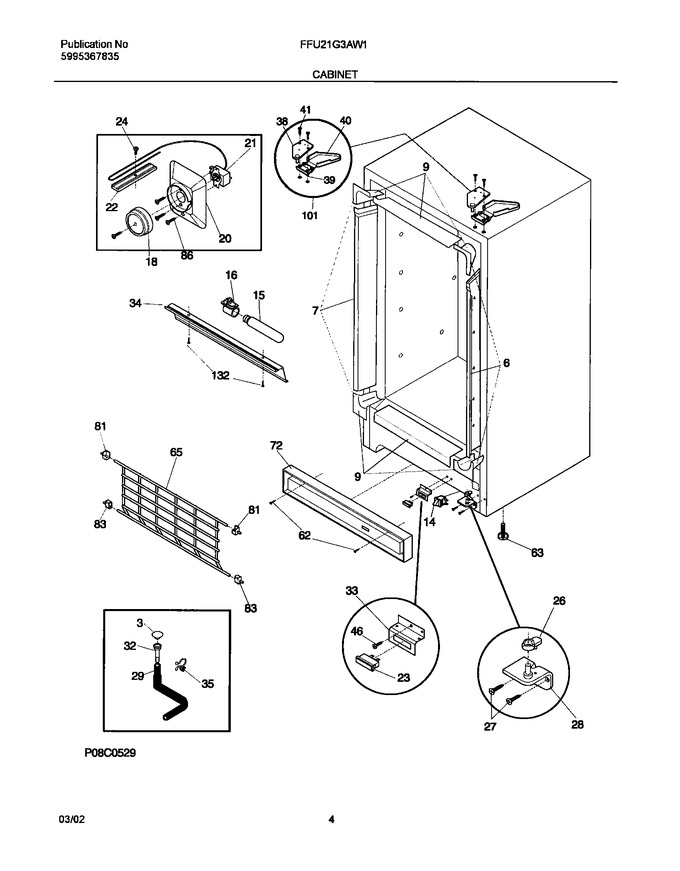

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216502600 | Plug-drain,interior ,interior |
|
Immediately | $ 17.35 | ||||
| 6 | 216604100 | Breaker Kit W/corners |
|
- | |||||
| 7 | 216603600 | Breaker Kit W/corners,lock Catch |
|
- | |||||
| 9 | 216603300 | Breaker Kit W/corners,32`` ,top Or Bottom |
|
$ 94.19 | |||||
| 14 | 216822900 | Light/lamp, Ramp |
|
Immediately | $ 70.16 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 73.06 | ||||
| 16 | 297139501 | Light/lamp,indicator (Replaces: 216817600) |
|
$ 19.52 | |||||
| 18 | 216707200 | Knob-control Cold |
|
$ 44.10 | |||||
| 20 | 216707300 | Cover-control Housing |
|
- | |||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 23 | 06594648 | Signal Light, Amber |
|
- | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 26 | 216503300 | Ramp, Closer Door |
|
$ 8.82 | |||||
| 27 | 154518001 | Screw-hinge, Cr, 1/4-20 X 1.000, Btm (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 28 | 216247400 | Hinge-bottom |
|
- | |||||
| 29 | 5304510363 | Hose-drain (Replaces: 216313502) |
|
$ 13.74 | |||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 33 | 216252001 | Bracket, Signal Light |
|
- | |||||
| 34 | 216816200 | Shield-light |
|
$ 70.72 | |||||
| 35 | 216273000 | Clip, Drain Hose |
|
$ 22.42 | |||||
| 38 | 216808900 | Hinge-upper |
|
$ 92.87 | |||||
| 39 | 5303294372 | Nut Insert-hinge |
|
$ 43.68 | |||||
| 40 | 297164400 | Cover-hinge (Replaces: 216809000) |
|
$ 12.65 | |||||
| 41 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 46 | 08037851 | Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness |
|
$ 3.57 | |||||
| 62 | 131420300 | Screw, Cr Truss Head, 8-18ab X 0.750 |
|
$ 13.46 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 65 | 216443500 | Drop Front |
|
- | |||||
| 72 | 216591110 | Grille/kickplate |
|
- | |||||
| 81 | 216571000 | Support-drop Front,top |
|
$ 33.55 | |||||
| 83 | 216571100 | Support-drop Front,btm |
|
- | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 101 | 216835200 | Kit-top Hinge |
|
$ 50.99 | |||||
| 132 | 5303283898 | Screw, 6-20ab X 3/8 |
|
- | |||||
| F21 | 297216004 | Control-temperature (Replaces: 216788100) |
|
Immediately | $ 53.52 | ||||
| NI | 09948773 | Insulation, Drain Tube |
|
$ 12.60 | |||||
| NI | 216802800 | Owners Guide |
|
$ 21.98 | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
