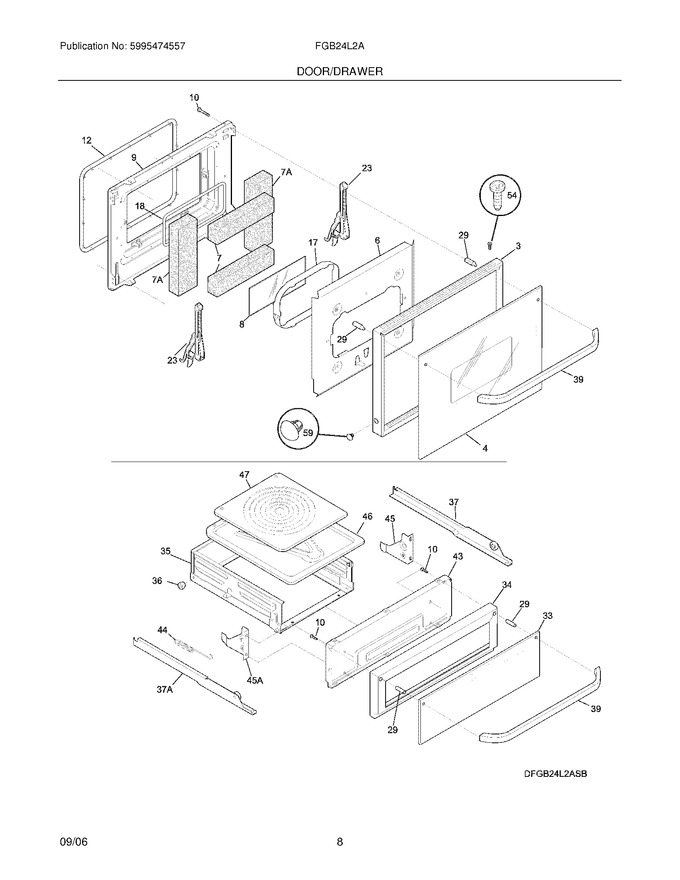

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026520		Trim-oven Door,black		Appelez-nous	-
4	318051516		Glass,oven Door ,black ,outer				$ 196.85
6	318073600		Shield-air Wash		Appelez-nous	-
7	318362110		Insulation,door ,top & Bottom ,(2)		Appelez-nous	-
8	5303323828		Glass-oven Door		Appelez-nous	-
9	318156604		Liner,oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
17	318162601		Support,glass		Appelez-nous	-
18	318053204		Seal,rope ,lower Oven				$ 63.05
23	318024702		Hinge,oven Door ,lower Oven		Appelez-nous	-
29	318014403		Spacer,door		Appelez-nous	-
33	3203715		Glass-drawer, Front		Appelez-nous	-
34	318116000		Panel,front Frame		Appelez-nous	-
35	318107000		Drawer,broiler		Appelez-nous	-
36	318332200		Roller,nylon		Appelez-nous	-
37	3203722		Rail-drawer Rh		Appelez-nous	-
39	318362822		Handle Assembly,door ,black ,w/spacer   (Replaces: 318362802)				$ 104.05
43	318107800		Liner,broiler Door		Appelez-nous	-
44	318088300		Spring-broiler		Appelez-nous	-
45	318024400		Hinge-broiler,rh		Appelez-nous	-
46	318126200		Pan-broiler		Appelez-nous	-
47	318126300		Insert-broiler Pan		Appelez-nous	-
54	5304436875		Screw,8-18 X 1/2,black				$ 14.41
59	3202113		Plug,button		Appelez-nous	-
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
45A	318024401		Hinge-broiler,lh		Appelez-nous	-
7A	318362111		Insulation,door ,sides ,(2)		Appelez-nous	-
F12	5303316768		Seal-oven Door, Lower Oven		Appelez-nous	-
NI	5303300414		Spacer, Cork & Rubber				$ 13.18
NI	5303323277		Screw (8-18x13/32)				$ 8.66

    View Diagram in Separate Window       Print Part List
