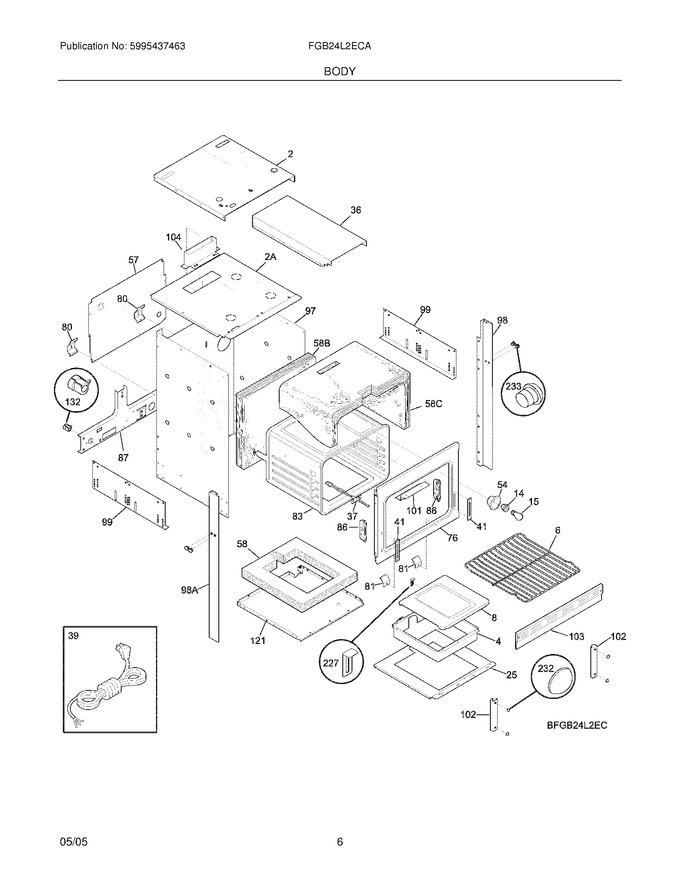

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318101903		Wrapper,top		Appelez-nous	-
4	318161500		Box-oven Burner		Appelez-nous	-
6	318345216		Rack-oven   (Replaces: 5303296873)				$ 103.90
8	318121400		Panel-oven Bottom		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
25	318179000		Shield-insulation,base		Appelez-nous	-
36	318176001		Flue		Appelez-nous	-
39	318144003		Cord,service		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
57	318071130		Shield,rear Wall		Appelez-nous	-
58	318133730		Insulation,oven Bottom		Appelez-nous	-
76	318056122		Front-oven		Appelez-nous	-
80	318192400		Spring,oven				$ 312.53
81	5303323710		Bracket-oven		Appelez-nous	-
83	318089403		Liner,oven Assy		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
87	5303308475		Bracket-safety Valve		Appelez-nous	-
97	318066803		Wrapper,back & Sides		Appelez-nous	-
98	318176812		Trim,side ,black ,inner,rh		Appelez-nous	-
99	318284201		Panel,adjustable ,side ,(2)		Appelez-nous	-
101	5303308474		Shield,vent		Appelez-nous	-
102	3203688		Support,oven Front		Appelez-nous	-
103	5303316735		Trim,base ,black ,lower		Appelez-nous	-
104	318170200		Flue		Appelez-nous	-
121	318145005		Wrapper,base		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
227	5303323958		Retainer,oven Bottom		Appelez-nous	-
232	318147410		Bumper,base		Appelez-nous	-
233	318166800		Plug,button ,black		Appelez-nous	-
2A	5303305035		Shield, Insulation		Appelez-nous	-
58B	318133704		Insulation,oven Back		Appelez-nous	-
58C	318133760		Insulation,top & Sides		Appelez-nous	-
98A	318176813		Trim,side ,black ,inner,lh		Appelez-nous	-
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
NI	318232517		Wiring Harness,main		Appelez-nous	-
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303325980		Screw,10-32 X 0.437				$ 12.76
