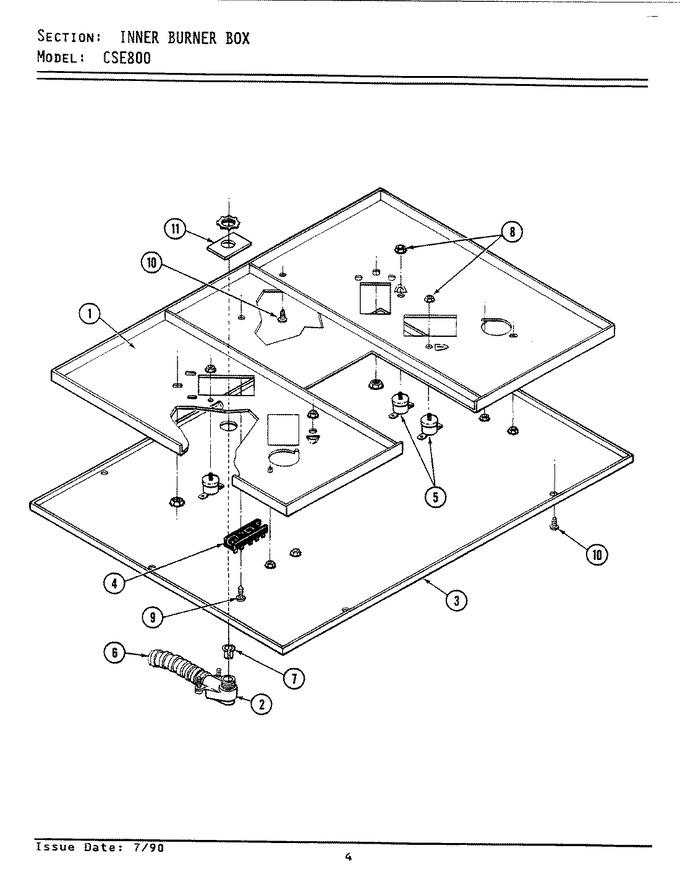

01 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F164-80 | Baffle, Ceramic Top | 00 |
|
- | ||||
| 2 | 3601F173-51 | Baffle, Heat----na | 00 |
|
- | ||||
| 3 | 4011F136-45 | Bottom, Burner Box | 00 |
|
- | ||||
| 4 | 4016F023-45 | Bottom, Burner Box-sides | 00 |
|
- | ||||
| 5 | 3801F188-45 | Bracket, Light Indicator | 00 |
|
- | ||||
| 6 | W10823707 | Element, Giant (Replaces: 7406P057-60) | 00 |
|
Immediately | $ 316.13 | |||
| 6 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 01 |
|
Immediately | $ 316.13 | |||
| 6 | Y04000063 | Limiter (8`` Element) | 00 |
|
- | ||||
| 7 | Y04000064 | Limiter (6`` Element) | 00 |
|
- | ||||
| 7 | W10823704 | Element, Std (Replaces: 7406P058-60) | 00 |
|
Immediately | $ 309.01 | |||
| 7 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 01 |
|
Immediately | $ 309.01 | |||
| 8 | 7746P023-60 | Frame, Main Top | 00 |
|
- | ||||
| 8 | 4870F006-60 | +tape, Silicone 1 In. By 102 I | 00 |
|
$ 37.74 | ||||
| 9 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 00 |
|
Immediately | $ 9.95 | |||
| 9 | 4870F006-60 | +tape, Silicone 1 In. By 102 I | 00 |
|
$ 37.74 | ||||
| 9 | 7918P030-60 | Main Top, Glass | 00 |
|
- | ||||
| 9 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 00 |
|
Immediately | $ 4.86 | |||
| 10 | 8008P033-60 | Grommet | 00 |
|
- | ||||
| 11 | 7711P438-60 | Knob, Switch | 00 |
|
- | ||||
| 12 | 7407P074-60 | Light, Indicator (hot Surface) | 00 |
|
- | ||||
| 13 | 3605F143-45 | Plate, Switch Mounting | 00 |
|
- | ||||
| 14 | 3804F092-45 | Retainer, Main Top Glass | 00 |
|
- | ||||
| 15 | WP74004005 | Screw (Replaces: 7101P042-60) | 00 |
|
$ 6.95 | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 00 |
|
Immediately | $ 6.85 | |||
| 17 | 3807F326-80 | Support, Ceramic Element | 00 |
|
- | ||||
| 18 | 8004P015-60 | Support, Element | 00 |
|
- | ||||
| 19 | 7403P266-60 | Switch, Infinite (1400w) | 02 |
|
- | ||||
| 19 | 7212P030-60 | Seal, Gasket Inf. Sw. | 00 |
|
- | ||||
| 19 | 7403P267-60 | Switch, Infinite (2400w) | 02 |
|
- | ||||
| 19 | W11122008 | Switch, Inf. Control (Replaces: 7403P182-60) | 00 |
|
$ 143.28 | ||||
| 20 | 7417P004-60 | Connector, Right Ang | 00 |
|
- | ||||
| 21 | 5130A014-60 | Wires, Conduit | 00 |
|
- | ||||
| 21 | 3801F072-45 | Bracket, Conduit | 00 |
|
- | ||||
| 21 | 3414F035-44 | Tubing, Conduit (flexible) | 00 |
|
- | ||||
| 22 | 8018P001-60 | Sleeve, Tube | 00 |
|
- | ||||
| 23 | 7401P016-60 | Block, Terminal | 00 |
|
- | ||||
| 23 | 5125A327-60 | Wires, Loose | 00 |
|
- | ||||
| 23 | 5170D182-60 | Harness, Wire | 00 |
|
- |
