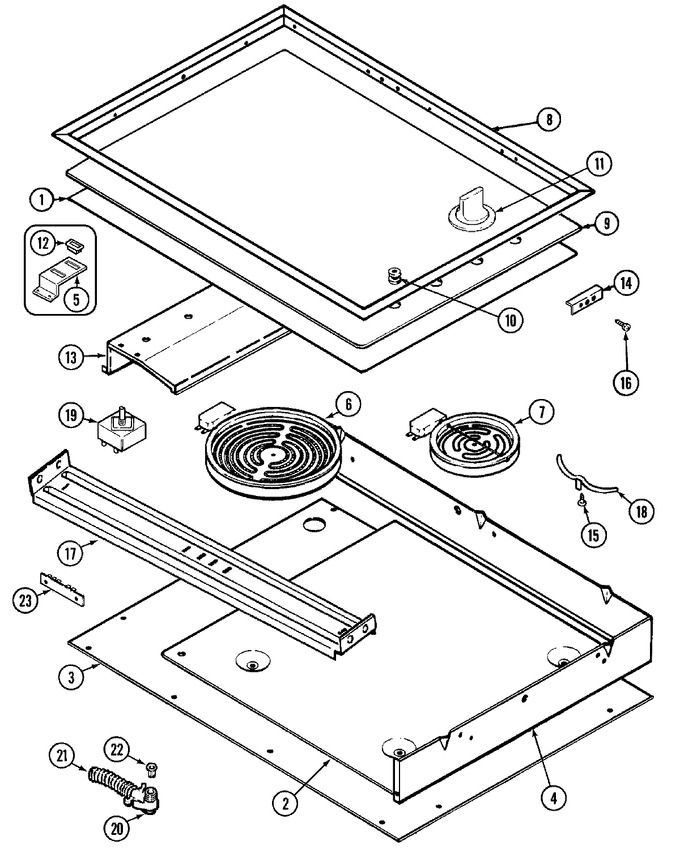

01 - Top Assembly
02 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001490 | Baffle, Ceramic Top | 11 |
|
- | ||||
| 1 | 74001176 | Baffle, Ceramic Top | 10 |
|
- | ||||
| 1 | 8010P085-60 | Spacer, Rubber | 10 |
|
- | ||||
| 2 | 3601F173-51 | Baffle, Heat----na | 10 |
|
- | ||||
| 3 | 4011F136-45 | Bottom, Burner Box | 10 |
|
- | ||||
| 3 | 74001491 | Box, Burner | 11 |
|
- | ||||
| 4 | 74001430 | Sides, Burner Box | 10 |
|
- | ||||
| 5 | 3801F313-45 | Bracket | 10 |
|
- | ||||
| 6 | W10823707 | Element W/limiter (8``) (Replaces: 74001012) | 12 |
|
Immediately | $ 316.13 | |||
| 6 | Y04000063 | Limiter (8`` Element) | 10 |
|
- | ||||
| 6 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 10 |
|
Immediately | $ 316.13 | |||
| 7 | Y04000064 | Limiter (6`` Element) | 10 |
|
- | ||||
| 7 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 10 |
|
Immediately | $ 309.01 | |||
| 7 | W10823704 | Element W/limiter (6``) (Replaces: 74001011) | 12 |
|
Immediately | $ 309.01 | |||
| 8 | 7746P023-60 | Frame, Main Top | 10 |
|
- | ||||
| 8 | 4870F006-60 | +tape, Silicone 1 In. By 102 I | 10 |
|
$ 37.74 | ||||
| 9 | 4870F006-60 | +tape, Silicone 1 In. By 102 I | 10 |
|
$ 37.74 | ||||
| 9 | 7918P030-60 | Main Top, Glass | 10 |
|
- | ||||
| 10 | 8008P033-60 | Grommet | 10 |
|
- | ||||
| 11 | 7711P484-60 | Knob, Switch (blk) | 10 |
|
- | ||||
| 12 | 74001241 | Light, Indicator (3 Term) | 10 |
|
- | ||||
| 12 | 74001242 | Light, Indicator (2 Term) | 10 |
|
- | ||||
| 13 | 8010P085-60 | Spacer, Rubber | 10 |
|
- | ||||
| 13 | 3605F175-45 | Plate, Switch Mtg | 10 |
|
- | ||||
| 14 | 74001497 | Spacer, Rubber | 10 |
|
- | ||||
| 14 | 3804F092-45 | Retainer, Main Top Glass | 10 |
|
- | ||||
| 15 | WP74004005 | Screw (Replaces: 7101P349-60) | 10 |
|
$ 6.95 | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 10 |
|
Immediately | $ 6.85 | |||
| 17 | 74001513 | Support, Ceramic Element | 10 |
|
- | ||||
| 18 | 8004P015-60 | Support, Element | 10 |
|
- | ||||
| 19 | 7212P030-60 | Seal, Gasket Inf. Sw. | 10 |
|
- | ||||
| 19 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 19 | 7403P322-60 | Switch, Infinite (6``) | 10 |
|
- | ||||
| 19 | 7403P320-60 | Switch, Infinite (8``) | 10 |
|
- | ||||
| 20 | 7417P003-60 | Connector, Cable | 10 |
|
- | ||||
| 20 | 7417P005-60 | Connector, Conduit | 10 |
|
- | ||||
| 21 | 3801F072-45 | Bracket, Conduit | 10 |
|
- | ||||
| 21 | 5160A003-60 | Wires, Tubing | 10 |
|
- | ||||
| 21 | 7434P010-60 | Tubing, Conduit (canada) | 10 |
|
- | ||||
| 22 | 8008P017-60 | Grommet | 10 |
|
- | ||||
| 23 | 7401P003-60 | Block, Terminal----na | 10 |
|
- | ||||
| NI | 74001514 | Harness, Wire | 10 |
|
- | ||||
| NI | 5125A364-60 | Wires, Loose | 10 |
|
- | ||||
| NI | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 10 |
|
Immediately | $ 4.86 | |||
| NI | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 10 |
|
Immediately | $ 9.95 | |||
| NI | 8110P202-60 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 8110P204-60 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
