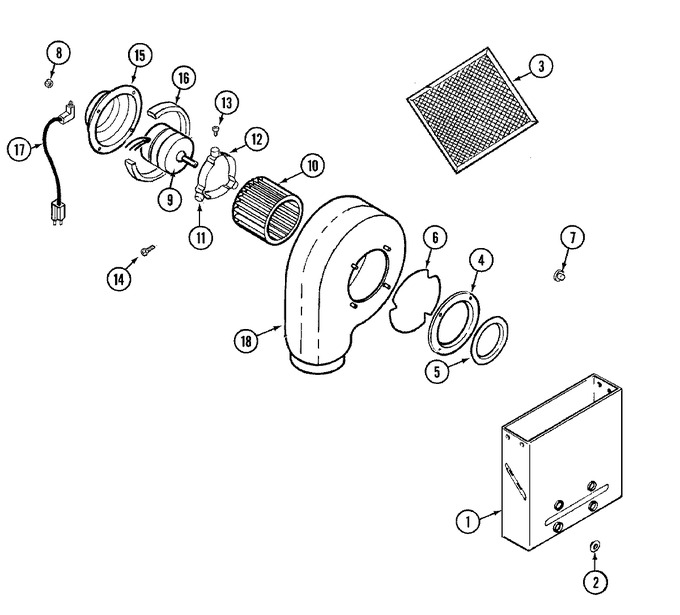

01 - Blower Assembly-plenum
02 - Burner Box Assembly
03 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002196 | Plenum Assy. | 11 |
|
- | ||||
| 2 | Y706193 | Plug, Hole | 11 |
|
- | ||||
| 3 | WPY706012 | Filter (Replaces: Y706012) | 11 |
|
Immediately | $ 57.29 | |||
| 4 | Y704758 | Ring, Inlet | 11 |
|
- | ||||
| 5 | Y704761 | Ring, Restrictor | 11 |
|
- | ||||
| 6 | Y704762 | Retainer | 11 |
|
- | ||||
| 7 | WPY707702 | Locknut (Replaces: Y707702) | 11 |
|
Immediately | $ 6.26 | |||
| 8 | 702889 | Locknut Cap, W/nylon Insert | 11 |
|
- | ||||
| 9 | Y706132 | Motor, Downdraft | 11 |
|
$ 335.03 | ||||
| 10 | WPY707985 | Wheel, Blower (Replaces: Y707985) | 11 |
|
Immediately | $ 145.55 | |||
| 11 | Y707393 | Band, Motor | 11 |
|
- | ||||
| 12 | WP71003558 | Isolator (Replaces: Y708926) | 11 |
|
$ 11.47 | ||||
| 13 | 707407 | Screw | 11 |
|
$ 6.42 | ||||
| 14 | 707161 | Nut | 11 |
|
- | ||||
| 14 | Y707402 | Screw | 11 |
|
- | ||||
| 15 | Y704760 | Cover, Motor | 11 |
|
- | ||||
| 16 | Y715957 | Foam, Urethane | 11 |
|
- | ||||
| 17 | Y702733 | Cord, Power (motor) | 11 |
|
- | ||||
| 18 | 712008 | Scroll, Blower Assy. | 11 |
|
- |
