SELECT A DIAGRAM
01 - Blower Assembly-plenum
02 - Burner Box Assembly

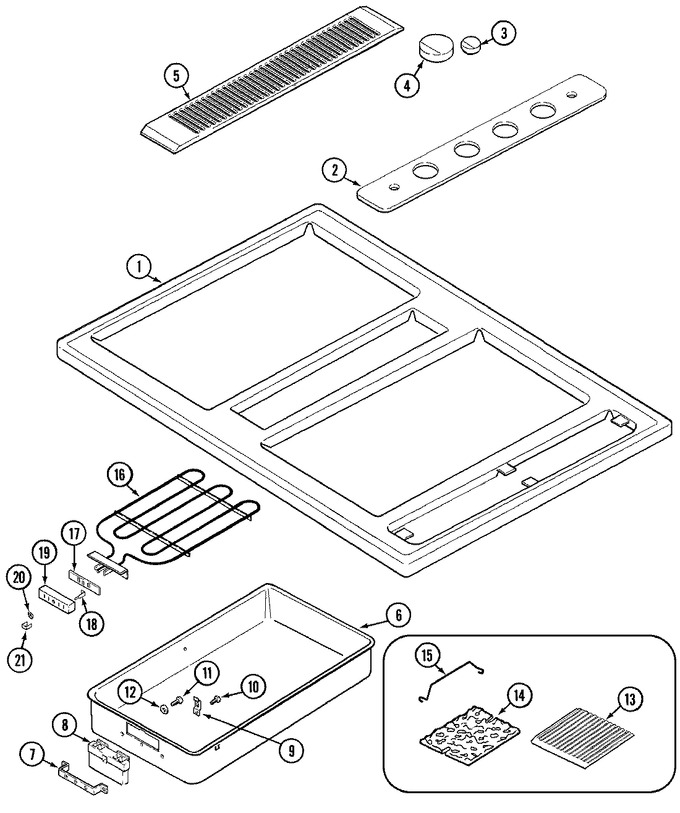

03 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002387 | Top, Main (wht) | 11 |
|
- | ||||
| 2 | 71001775 | Retainer, Glass | 11 |
|
- | ||||
| 2 | 71002485 | Glass, Control Panel (wht) | 11 |
|
- | ||||
| 3 | 71002308 | Knob, Fan (wht) | 11 |
|
- | ||||
| 4 | 71002487 | Knob, Switch (wht) | 11 |
|
- | ||||
| 5 | 71002190 | Grill, Air (wht) | 11 |
|
- | ||||
| 6 | Y701956 | Pan, Grill (rt) | 11 |
|
- | ||||
| 6 | 701955 | Pan, Grill (lt) | 11 |
|
- | ||||
| 7 | Y702698 | Bracket | 11 |
|
- | ||||
| 8 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 11 |
|
Immediately | $ 96.61 | |||
| 9 | 74004835 | Clip (Replaces: Y702699) | 11 |
|
$ 11.37 | ||||
| 10 | 00489128 | Screw (Replaces: Y705026) | 11 |
|
$ 773.97 | ||||
| 11 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 12 | Y707664 | Washer | 11 |
|
- | ||||
| 13 | 703905 | Grate, Grill | 11 |
|
- | ||||
| 14 | 708929 | Plate, Rock | 11 |
|
- | ||||
| 15 | 700819 | Support, Rock Plate | 11 |
|
$ 71.81 | ||||
| 16 | WP5700M426-60 | Element, Grill (energy Saver) (Replaces: 71001582) | 11 |
|
$ 382.26 | ||||
| 17 | Y700449 | Insulator | 11 |
|
- | ||||
| 18 | Y708572 | Spade, Contact | 11 |
|
Immediately | $ 11.34 | |||
| 19 | WPY708730 | Block, Terminal (Replaces: Y708730) | 11 |
|
Immediately | $ 87.44 | |||
| 20 | Y708862 | Nut, Speed | 11 |
|
$ 13.08 | ||||
| 21 | Y700450 | Clip, Shunt | 11 |
|
$ 9.51 | ||||
| NI | 71002192 | Harness, Switch Plate | 11 |
|
- | ||||
| NI | 71002488 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 11 |
|
- |
