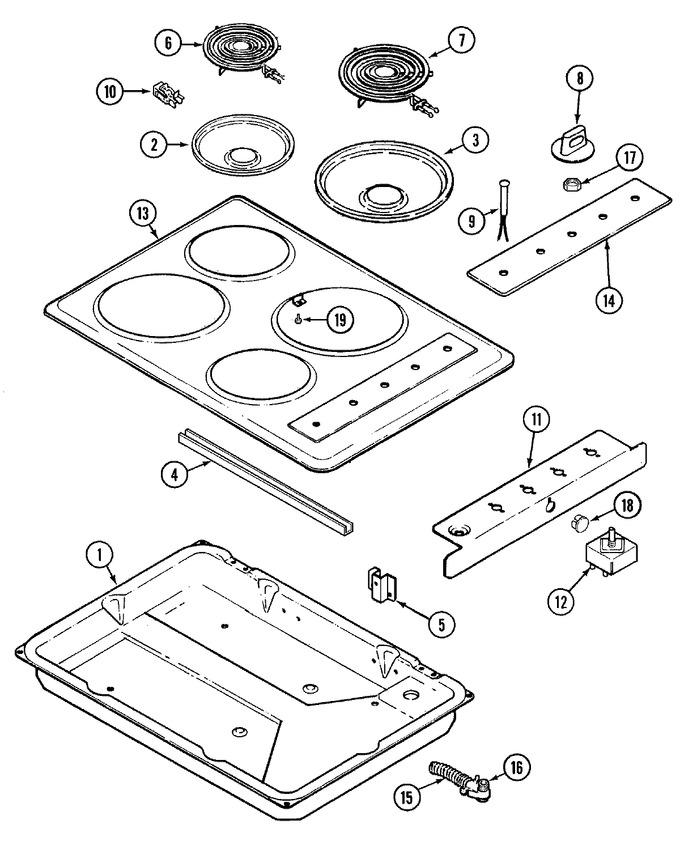

01 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F143-80 | Bottom, Burner Box | 10 |
|
- | ||||
| 2 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 7725P047-60) | 10 |
|
Immediately | $ 15.56 | |||
| 3 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 7725P048-60) | 10 |
|
Immediately | $ 12.05 | |||
| 4 | 3802F070-80 | Brace, Top | 10 |
|
- | ||||
| 5 | 3801F183-45 | Bracket, Main Top Support | 10 |
|
- | ||||
| 6 | WP660532 | Element (small) (Replaces: Y04000032) | 10 |
|
Immediately | $ 36.90 | |||
| 7 | WP3191454 | Element, Surface 8``x5t,chr (Replaces: Y04000031) | 10 |
|
$ 163.63 | ||||
| 8 | 7737P029-60 | Knob, Switch | 10 |
|
$ 18.07 | ||||
| 9 | 7407P062-60 | Lamp Signal | 10 |
|
- | ||||
| 10 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 28.45 | |||
| 11 | 3604F133-80 | Shield Switch Wiring | 10 |
|
- | ||||
| 12 | W10900107 | Switch, Infinite (Replaces: 7403P027-60) | 10 |
|
Immediately | $ 51.87 | |||
| 13 | 2002W063-81 | Top Assy, Main Wht | 10 |
|
- | ||||
| 14 | 7719P067-60 | Nameplate | 10 |
|
- | ||||
| 14 | 7720P153-60 | Trim, Control Panel (wht) | 10 |
|
- | ||||
| 15 | 3414F035-44 | Tubing, Conduit (flexible) | 10 |
|
- | ||||
| 15 | 74001447 | Wires, Tubing | 10 |
|
- | ||||
| 16 | 8018P001-60 | Sleeve, Tube | 10 |
|
- | ||||
| 16 | 3801F072-45 | Bracket, Conduit | 10 |
|
- | ||||
| 16 | 7417P004-60 | Connector, Right Ang | 10 |
|
- | ||||
| 17 | 7103P021-60 | Nut, Switch | 10 |
|
- | ||||
| 18 | W11577436 | Grommet (Replaces: 8008P010-60) | 10 |
|
- | ||||
| 19 | WP74004005 | Screw (Replaces: 7101P349-60) | 10 |
|
$ 6.95 | ||||
| NI | 8112P102-60 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 5175A015-60 | Harness, Complete Assy | 10 |
|
- | ||||
| NI | 16002079 | Guide, Quick Ref - Admiral | 10 |
|
- |
