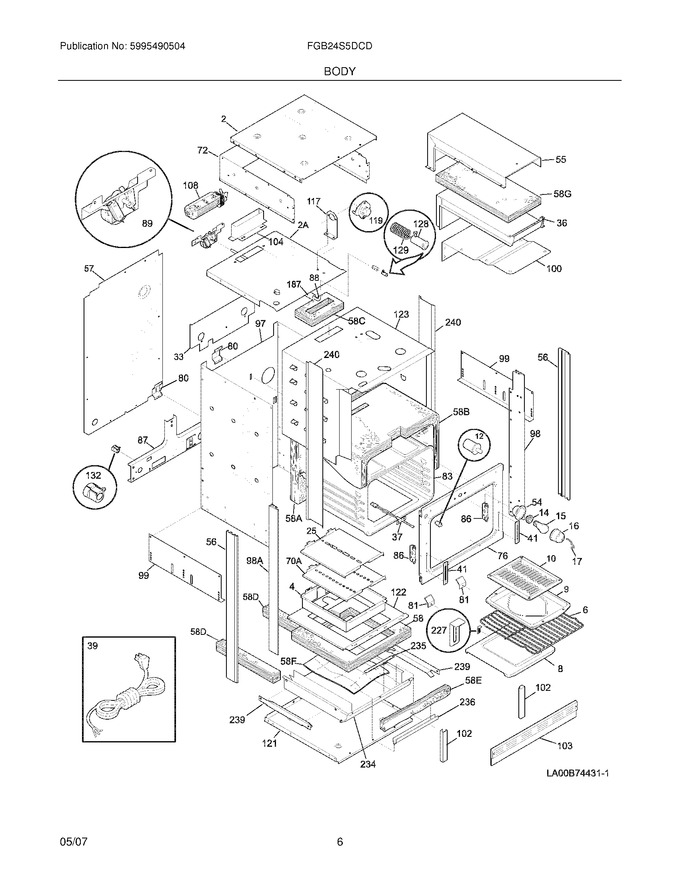

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 318145003 | Wrapper-base |
|
- | |||||
| 4 | 318161500 | Box-oven Burner |
|
- | |||||
| 6 | 318345204 | Rack,oven ,(2) |
|
- | |||||
| 8 | 318121400 | Panel-oven Bottom |
|
- | |||||
| 9 | 5303317977 | Pan,broileroptional Access0ry |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Panoptional Access0ry |
|
- | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 25 | 318179000 | Shield-insulation,base |
|
- | |||||
| 33 | 318187301 | Shield-housing |
|
- | |||||
| 36 | 3203725 | Flue |
|
- | |||||
| 39 | 318144007 | Cord,service |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 55 | 5303326219 | Shield,flue |
|
- | |||||
| 56 | 318145508 | Trim-bodyside |
|
- | |||||
| 57 | 318071130 | Shield,rear Wall |
|
- | |||||
| 58 | 318285010 | Insulation,oven Bottom |
|
- | |||||
| 72 | 318327900 | Wrapper,shield |
|
- | |||||
| 76 | 318056139 | Front-oven |
|
- | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 81 | 5303323710 | Bracket-oven |
|
- | |||||
| 83 | 318089411 | Liner,oven Assy |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 87 | 5303308443 | Bracket-safety Valve |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 97 | 318066804 | Wrapper,back & Sides |
|
- | |||||
| 98 | 318029400 | Trim-side, Inner, Rh |
|
- | |||||
| 99 | 318284201 | Panel,adjustable ,side ,(2) |
|
- | |||||
| 100 | 5303302715 | Shield,flue ,bottom |
|
- | |||||
| 102 | 3203688 | Support,oven Front |
|
- | |||||
| 103 | 5303316735 | Trim,base ,black ,lower |
|
- | |||||
| 104 | 318170210 | Flue |
|
- | |||||
| 117 | 5303302718 | Bracket,thermo Protect |
|
- | |||||
| 121 | 318145005 | Wrapper,base |
|
- | |||||
| 122 | 5303210844 | Shield-heat, Lower |
|
- | |||||
| 123 | 318071422 | Shield,insulation ,top & Sides |
|
- | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 132 | 5304513507 | Strain Relief (Replaces: 3201437) |
|
$ 9.10 | |||||
| 187 | 318013501 | Tube,latch Rod |
|
- | |||||
| 227 | 5303323958 | Retainer,oven Bottom |
|
- | |||||
| 234 | 5303210851 | Shield, Burner Box |
|
- | |||||
| 235 | 5303326207 | Bracket |
|
- | |||||
| 236 | 318108900 | Shield,insulation ,1.25x1.0x12.9 |
|
- | |||||
| 239 | 5303326183 | Angle,burner Box |
|
- | |||||
| 240 | 318119301 | Shield,bodyside |
|
- | |||||
| 2A | 318102402 | Cover,mid Top |
|
- | |||||
| 58A | 318285011 | Insulation,oven Back |
|
- | |||||
| 58B | 318285015 | Insulation,top & Sides ,oven Wrapper |
|
- | |||||
| 58C | 318285090 | Insulation,flue |
|
- | |||||
| 58D | 318285033 | Insulation,3``x4``x17`` ,(2) |
|
- | |||||
| 58E | 318285034 | Insulation,1``x1.75``x18`` |
|
- | |||||
| 58F | 318285067 | Insulation,deflector |
|
- | |||||
| 58G | 318285035 | Insulation,flue |
|
- | |||||
| 70A | 5303210843 | Shield-insulation |
|
- | |||||
| 98A | 318029401 | Trim-side, Inner, Lh |
|
- | |||||
| F108 | 318073025 | Motor,blower |
|
- | |||||
| F119 | 5303326252 | Switch-thermal |
|
- | |||||
| F12 | 318394803 | Switch,light (Replaces: 318089913) |
|
Immediately | $ 44.23 | ||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F89 | 318095953 | Motor,latch Assy ,w/brkt & Switch |
|
$ 183.54 | |||||
| NI | 08002868 | Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box |
|
$ 14.18 | |||||
| NI | 08011955 | Screw,10-24 X 0.375 ,square Drive |
|
Immediately | $ 9.36 | ||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303302745 | Screw,10-16x1-1/8 ,square Drive |
|
$ 8.35 | |||||
| NI | 5303288566 | Screw,8 X 1/4 ,(4) (Replaces: 5303323130) |
|
$ 2.12 | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 318120711 | Switch |
|
$ 87.68 | |||||
| NI | 5303300195 | Screw,10-32 X 0.375 ,terminal Block ,(2) |
|
- | |||||
| NI | 5303320422 | Screw,6-20 X 5/16 ,black ,(6) |
|
$ 12.71 | |||||
| NI | 5303271097 | Bracket,light Switch |
|
- | |||||
| NI | 5303311528 | Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black |
|
- | |||||
| NI | 318232523 | Wiring Harness,main |
|
- | |||||
| NI | 318147430 | Bumper,(2) (Replaces: 318147411) |
|
$ 18.95 | |||||
| NI | 318003606 | Thermostat,safety ,.945`` Mtg. ,140/170 |
|
$ 105.19 | |||||
| NI | 318003624 | Thermostat,safety ,1.375`` Mtg ,105/120 (Replaces: 318003613) |
|
Immediately | $ 23.39 |
