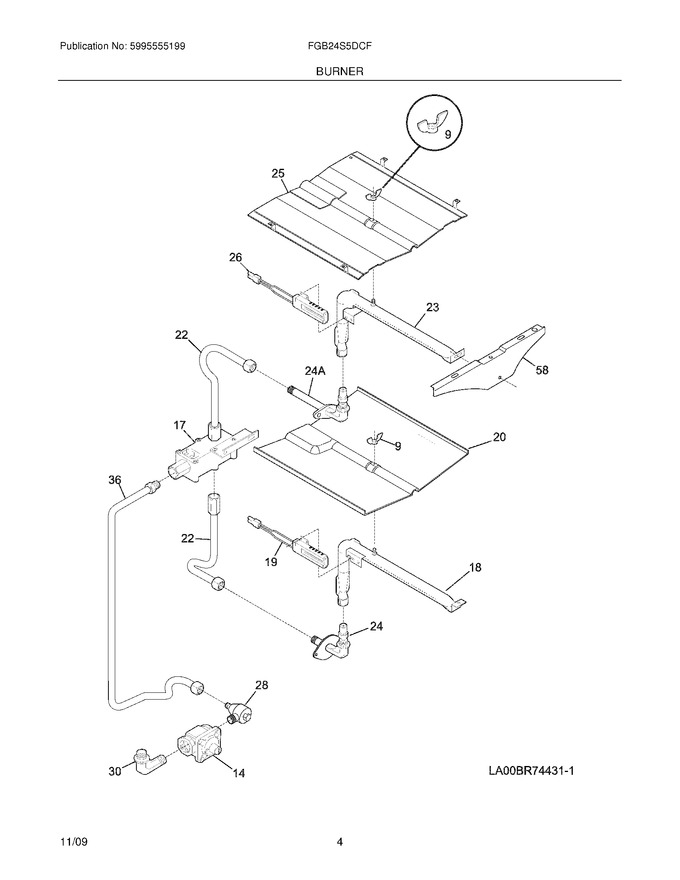

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
20	3203676		Baffle,oven Burner		Appelez-nous	-
22	5303271092		Tubing,valve		Appelez-nous	-
25	5303326220		Baffle Broil Burner		Appelez-nous	-
25	318370110		Baffle,broil Burner		Appelez-nous	-
30	5303305657		Elbow Fitting		Appelez-nous	-
36	318177801		Tubing,safety Valve ,upper		Appelez-nous	-
58	318123600		Shield, Broiler		Appelez-nous	-
F14	5303210167		Regulator,pressure		Appelez-nous	-
F17	5303210798		Valve-safety			Immediately	$ 587.56
F18	5303210787		Burner-oven		Appelez-nous	-
F19	5303935066		Ignitor,oven Burner   (Replaces: 318177710)			Immediately	$ 59.58
F23	5303283132		Burner,broiler		Appelez-nous	-
F24	5303210786		Mixer Elbow, Bake		Appelez-nous	-
F24A	5303210807		Mixer Elbow, Broiler		Appelez-nous	-
F26	5303935068		Ignitor,broiler   (Replaces: 316119302)				$ 166.55
F28	5303295305		Valve-shut Off		Appelez-nous	-
NI	5303311549		Screw-burner Mtg		Appelez-nous	-
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	5303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
