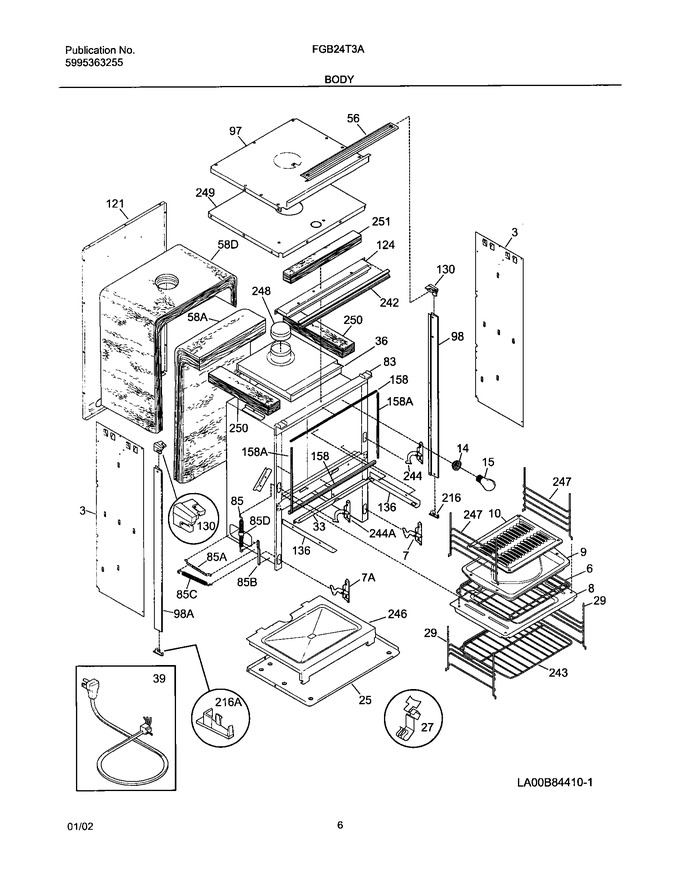

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303317132		Wrapper-side Outer		Appelez-nous	-
6	08012158		Rack-oven,upper ,(2)		Appelez-nous	-
7	5303298313		Hinge Assy,rh Lower		Appelez-nous	-
8	318136500		Panel-oven Bottom		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	08011171		Socket,oven Light		Appelez-nous	-
25	5303317712		Shield-heat,lower		Appelez-nous	-
27	5303284616		Clip,thermo Bulb Mtg				$ 9.86
29	5303209887		Glide-broiler Rack		Appelez-nous	-
33	5303317128		Shield-heat		Appelez-nous	-
36	5303298341		Flue		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
56	318028201		Trim-oven Top		Appelez-nous	-
83	318109510		Liner-oven Assy		Appelez-nous	-
85	5303317711		Spring-oven Door,lower		Appelez-nous	-
97	5303317130		Wrapper,top ,outer		Appelez-nous	-
98	318029003		Trim,bodyside ,white ,rh		Appelez-nous	-
121	5303317131		Wrapper-back		Appelez-nous	-
124	318076801		Box,horizontal Flue		Appelez-nous	-
130	318034601		Cap-end Top,white ,(2)		Appelez-nous	-
136	5303317129		Angle-rack Guide		Appelez-nous	-
158	5303207644		Seal-door,black ,top Broiler		Appelez-nous	-
216	318034502		Cap-end Bottom,white ,rh		Appelez-nous	-
242	318027201		Trim-center,satin		Appelez-nous	-
243	3201495		Rack-oven,lower		Appelez-nous	-
244	5303205940		Hinge Assy,oven Door ,rh Upper		Appelez-nous	-
246	318133600		Panel-oven Bottom		Appelez-nous	-
247	3018717		Glide-oven Rack		Appelez-nous	-
248	5303317121		Cap-flue		Appelez-nous	-
249	5304400385		Wrapper-top,inner		Appelez-nous	-
250	318133756		Insulation		Appelez-nous	-
251	318133772		Insulation		Appelez-nous	-
58A	318133723		Insulation,oven Back		Appelez-nous	-
58D	318133724		Insulation,oven Wrapper		Appelez-nous	-
7A	5303298312		Hinge Assy,lh Lower		Appelez-nous	-
85A	318113300		Bracket,door Spring ,lower		Appelez-nous	-
85B	5303317126		Bracket,door Spring ,upper		Appelez-nous	-
85C	5303207651		Spring-oven Door,upper		Appelez-nous	-
85D	318166900		Sleeve-door Spring		Appelez-nous	-
98A	318029002		Trim-bodyside,white ,lh		Appelez-nous	-
F15	3201908		Light,oven		Appelez-nous	-
F158	5303295311		Seal-side,bake Oven		Appelez-nous	-
F216	318034503		Cap-end Bottom,white ,lh		Appelez-nous	-
F244	5303205939		Hinge Assy,oven Door ,lh Upper		Appelez-nous	-
NI	5303308450		Screw,8 X 0.375		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5304400428		Screw,shoulder Head ,8-15a X 0.125				$ 5.40
NI	5304400429		Screw (8-18 X 1 )		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
