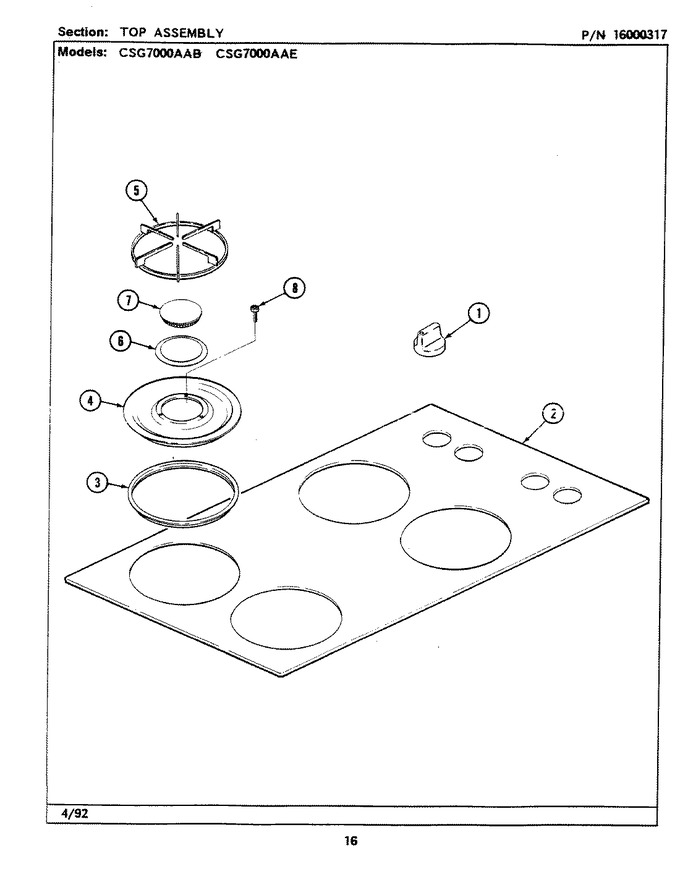

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7711P456-60 | Knob Burner Black | 00 |
|
- | ||||
| 2 | 7918P043-60 | Top, Main (glass-blk) | 00 |
|
- | ||||
| 3 | 12400008 | Tape, Seal 112`` Long | 00 |
|
- | ||||
| 4 | 3424F001-90 | Bowl, Drip (blk) | 00 |
|
- | ||||
| 5 | 2003F022-00 | Grate Burner (black) | 00 |
|
- | ||||
| 6 | 2014F001-90 | Ring, Black | 00 |
|
- | ||||
| 7 | 7504P007-60 | Cap, Surface Burner, Black | 00 |
|
- | ||||
| 8 | 7101P286-60 | Screw, Burner Mtg | 00 |
|
$ 7.00 | ||||
| 8 | 12400021 | Tape Burner Box Seal 107`` | 00 |
|
- | ||||
| 8 | 12400017 | Tape Kit (wht) Foam 112`` | 00 |
|
- |
