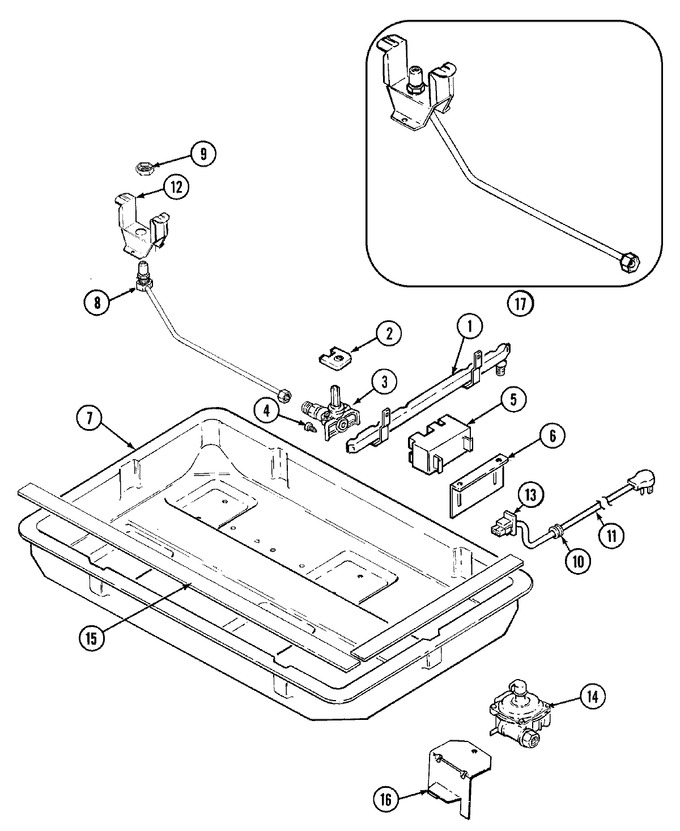

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
1	7513P098-60		Pipe, Manifold	10	Appelez-nous	-
2	WP7403P190-60		Switch, Burner   (Replaces: 7403P190-60)	10			$ 118.82
3	7502P254-60		Valve, Burner	11	Appelez-nous	-
3	7502P106-60		Valve, Top Burner	10	Appelez-nous	-
4	7101P043-60		Screw, Control Valve	10	Appelez-nous	-
5	12001596		Module, Spark   (Replaces: 7431P023-60)	10		Immediately	$ 85.93
6	WP7101P126-60		Screw   (Replaces: 7101P059-60)	10		Immediately	$ 6.85
6	3801F304-45		Bracket, Spark Module	10	Appelez-nous	-
7	4011F212-80		Box, Burner	10	Appelez-nous	-
8	7507P101-60		Orifice	10	Appelez-nous	-
8	W10124350		Not Required Part Or See Note	18	Appelez-nous	-
8	7507P103-60		Fitting, Orifice	10	Appelez-nous	-
9	7103P119-60		Palnut	10	Appelez-nous	-
9	W10124350		Not Required Part Or See Note	18	Appelez-nous	-
10	8007P003-60		Bushing, Snap	10	Appelez-nous	-
11	7402P014-60		Cord, Power	10	Appelez-nous	-
12	3807F442-51		Support, Orifice	10	Appelez-nous	-
12	W10124350		Not Required Part Or See Note	18	Appelez-nous	-
12	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
13	7401P017-60		Block, Disconnect (pin)	10	Appelez-nous	-
13	7401P018-60		Block	10	Appelez-nous	-
14	7510P002-60		Regulator, Pressure	10	Appelez-nous	-
15	12400021		Tape Burner Box Seal 107``	10	Appelez-nous	-
16	W11684512		Screw (10abx1.0-zn)   (Replaces: 7101P060-60)	10			$ 12.69
16	3801F192-45		Bracket, Tie Down	10	Appelez-nous	-
17	74002003		Orifice Assy.	18	Appelez-nous	-
17	74002004		Orifice Assy.	18	Appelez-nous	-
NI	7208P019-60		Seal, Manifold Pipe	10	Appelez-nous	-
NI	5125A234-60		Wires, Loose	10	Appelez-nous	-
NI	12400039		Tape Kit (blk) Foam 112``	10	Appelez-nous	-
