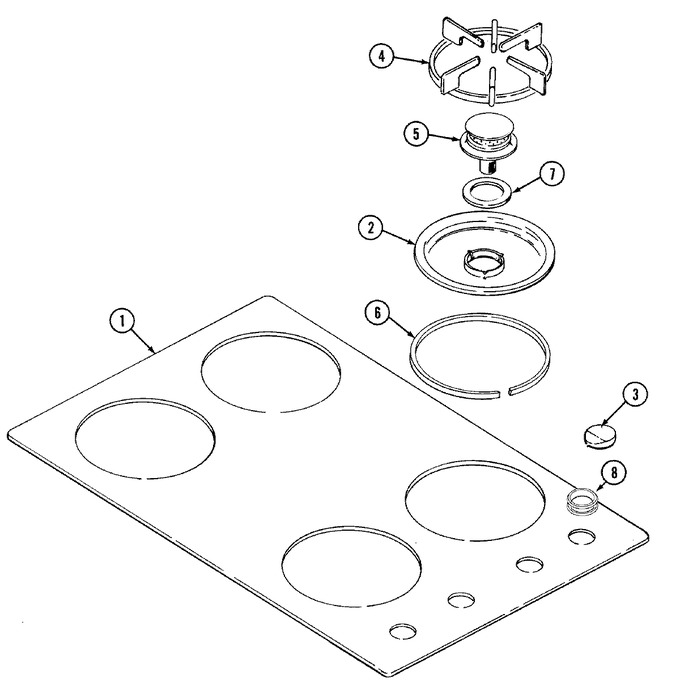

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001302 | Top, Glass (blk) | 10 |
|
- | ||||
| 2 | 7101P314-60 | Screw | 10 |
|
- | ||||
| 2 | 3424F002-90 | Bowl, Drip (blk) | 10 |
|
- | ||||
| 2 | 74003162 | Bowl, Drip (blk) | 13 |
|
- | ||||
| 3 | 74001299 | Knob, Infinite (blk) | 10 |
|
$ 9.65 | ||||
| 4 | 7518P023-60 | Grate, Rd (blk) | 10 |
|
- | ||||
| 4 | 74003166 | Grate, Burner (blk) | 13 |
|
$ 74.83 | ||||
| 5 | WP3412D024-09 | Sealed Burner Assy. (blk) (Replaces: 3412D018-09) | 10 |
|
Immediately | $ 92.69 | |||
| 5 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner) | 10 |
|
- | ||||
| 5 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 6 | 12400041 | Seal, Tape | 10 |
|
$ 48.39 | ||||
| 6 | W10896751 | Washer (Replaces: 7109P036-60) | 10 |
|
- | ||||
| 7 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 10 |
|
Immediately | $ 92.69 | |||
| 8 | 8008P039-60 | Grommet, Glass | 10 |
|
- | ||||
| NI | 5125A234-60 | Wires, Loose | 10 |
|
- | ||||
| NI | 5111A610-60 | Wire, Igniter - R | 10 |
|
- | ||||
| NI | 5111A261-60 | Wire, Igniter - R | 10 |
|
- | ||||
| NI | 8113P057-60 | Manual, Use & Care (french) | 10 |
|
- | ||||
| NI | 8111P017-60 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
