SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Burner


07 - Body


09 - Doors

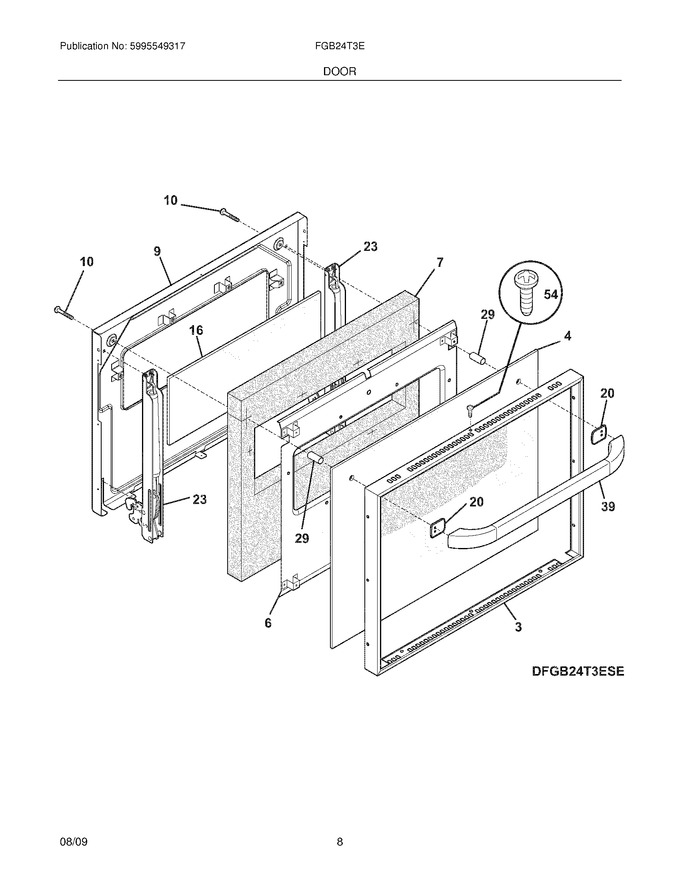

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026500		Trim,oven Door ,black		Appelez-nous	-
4	318178514		Glass,door ,black ,outer		Appelez-nous	-
6	318574300		Shield,wool		Appelez-nous	-
7	318294928		Insullation,door		Appelez-nous	-
9	318048902		Liner,oven Door		Appelez-nous	-
10	5304500008		Screw,10-24 X 1.750 ,handle Mtg   (Replaces: 5304416408)				$ 12.13
16	318042310		Glass,door ,heat Barrier		Appelez-nous	-
20	5303300175		Spacer-handle,black		Appelez-nous	-
23	318567104		Hinge,oven Door				$ 87.20
29	318014408		Spacer,door		Appelez-nous	-
39	318186101		Handle,door ,black		Appelez-nous	-
54	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304459529		Screw,no.10-24 X 1 7/8 ,(2)				$ 10.12

    View Diagram in Separate Window       Print Part List
