01 - Gas Controls\body

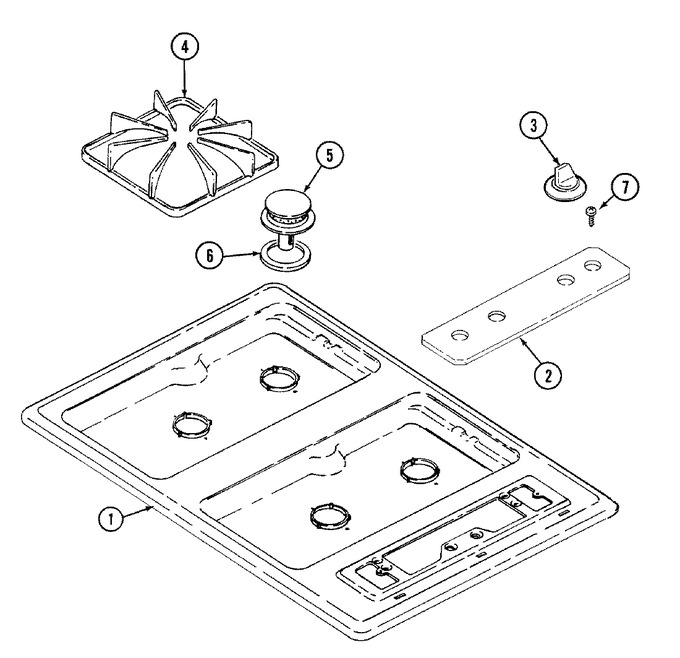

02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W091-81 | Top, Main (wht) | 16 |
|
- | ||||
| 2 | 7720P148-60 | Panel, Control (wht) | 16 |
|
- | ||||
| 2 | 7719P062-60 | Nameplate, Admiral (blk) | 16 |
|
- | ||||
| 3 | 74001385 | Knob, Top Burner (wht) | 16 |
|
$ 23.24 | ||||
| 4 | 2003W027-26 | Grate (gry) | 16 |
|
- | ||||
| 5 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 16 |
|
$ 6.98 | ||||
| 5 | WP3412D024-26 | Sealed Burner Assy. (gry) (Replaces: 3412D018-26) | 16 |
|
Immediately | $ 90.27 | |||
| 5 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner) | 16 |
|
- | ||||
| 6 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 16 |
|
Immediately | $ 92.69 | |||
| 7 | WP74004005 | Screw (Replaces: 7101P349-60) | 16 |
|
$ 6.95 | ||||
| NI | 5125A234-60 | Wires, Loose | 16 |
|
- | ||||
| NI | 5111A610-60 | Wire, Igniter - R | 16 |
|
- | ||||
| NI | 5111A261-60 | Wire, Igniter - R | 16 |
|
- | ||||
| NI | 8113P037-60 | Manual, Use & Care | 16 |
|
- | ||||
| NI | 16002079 | Guide, Quick Ref - Admiral | 16 |
|
- |
