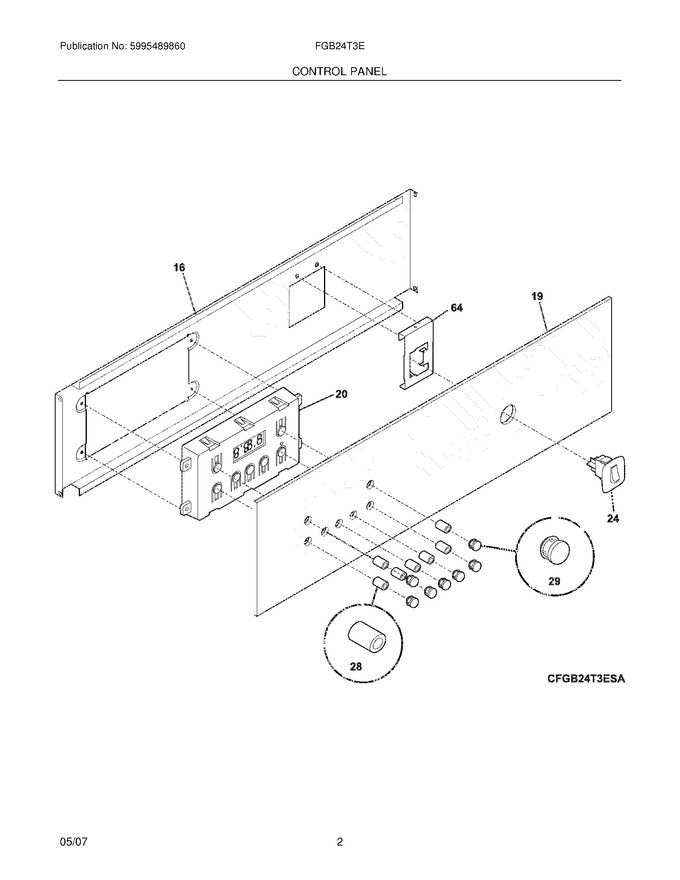

03 - Control Panel


05 - Burner


07 - Body


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318116906		Plate,instrument Mtg		Appelez-nous	-
19	318212504		Glass,control Panel ,white		Appelez-nous	-
28	5304410865		Tube,timer Knob				$ 8.51
29	318017710		Knob,clock/timer ,white				$ 27.51
64	318110700		Bracket-light Switch		Appelez-nous	-
F20	316455461		Clock/timer,electronic ,es100				$ 347.95
F24	316090901		Switch,oven Light ,white		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
