New Model Search:

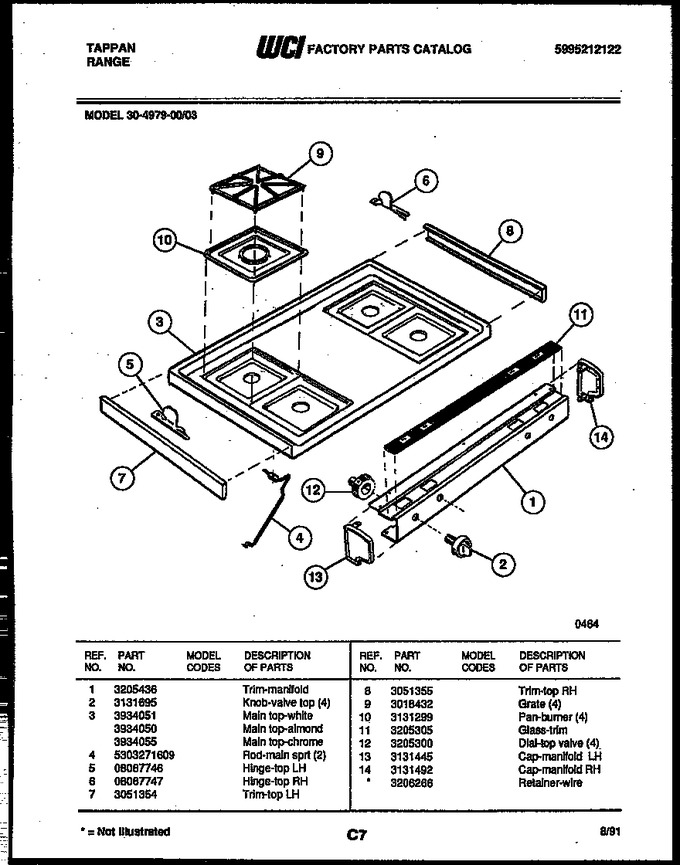

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205436 | Trim-manifold |
|
- | |||||
| 2 | 3131695 | Knob-valve Top (4) |
|
- | |||||
| 3 | 3934050 | Main-top (almond) |
|
- | |||||
| 4 | 5303271609 | Rod-main Sprt (2) |
|
- | |||||
| 5 | 08067746 | Hinge-top Lh |
|
- | |||||
| 6 | 08067747 | Hinge-top Rh |
|
- | |||||
| 7 | 3051354 | Trim-top Lh |
|
- | |||||
| 8 | 3051355 | Trim-top Rh |
|
- | |||||
| 9 | 3018432 | Grate (4) |
|
- | |||||
| 10 | 3131299 | Pan-burner (4) |
|
- | |||||
| 11 | 3205305 | Glass Trim |
|
- | |||||
| 12 | 3205300 | Dial Top Valve (4) |
|
- | |||||
| 13 | 3131445 | Cap-manifold Lh |
|
- | |||||
| 14 | 3131492 | Cap-manifold Rh |
|
- | |||||
| *57409 | 3206266 | Retainer Wire |
|
- |
