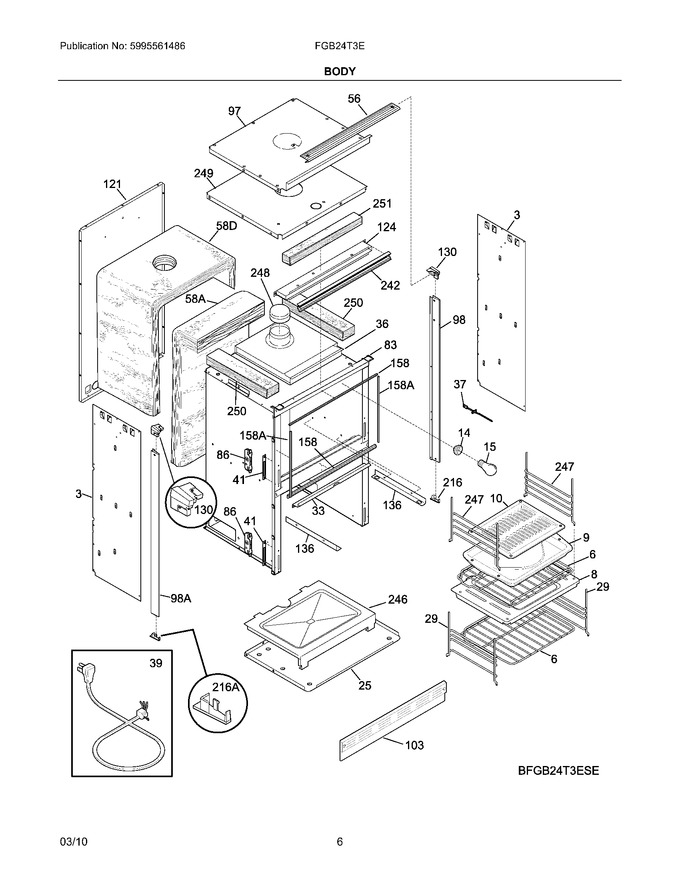

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303317132		Wrapper-side Outer		Appelez-nous	-
6	318345800		Rack,oven ,upper & Lower ,(3)		Appelez-nous	-
8	318136500		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
25	5303317712		Shield-heat,lower		Appelez-nous	-
29	318355210		Glide,broiler Rack ,(2)		Appelez-nous	-
33	5303317128		Shield-heat		Appelez-nous	-
36	5303298341		Flue		Appelez-nous	-
41	318569100		Spacer,receptacle ,hinge ,(2)		Appelez-nous	-
56	318028201		Trim-oven Top		Appelez-nous	-
83	318109512		Liner,oven Assy		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
97	5303317130		Wrapper,top ,outer		Appelez-nous	-
98	318029003		Trim,bodyside ,white ,rh		Appelez-nous	-
103	5303316734		Trim,base ,white ,lower		Appelez-nous	-
121	5303317131		Wrapper-back		Appelez-nous	-
124	318076801		Box,horizontal Flue		Appelez-nous	-
130	318034601		Cap-end Top,white ,(2)		Appelez-nous	-
136	5303317129		Angle-rack Guide		Appelez-nous	-
158	5303207644		Seal-door,black ,top Broiler		Appelez-nous	-
216	318034502		Cap-end Bottom,white ,rh		Appelez-nous	-
242	318027201		Trim-center,satin		Appelez-nous	-
246	318133600		Panel-oven Bottom		Appelez-nous	-
247	318355200		Glide,oven Rack ,(2)		Appelez-nous	-
248	5303317121		Cap-flue		Appelez-nous	-
249	5304400385		Wrapper-top,inner		Appelez-nous	-
250	318285042		Insulation,3`` X 2`` X 17.5`` ,(2)		Appelez-nous	-
251	318285048		Insulation,2``x 2.5``x 21.5``		Appelez-nous	-
58A	318285007		Insulation,oven Back		Appelez-nous	-
58D	318285008		Insulation,oven Wrapper		Appelez-nous	-
98A	318029002		Trim-bodyside,white ,lh		Appelez-nous	-
F158	5303295311		Seal-side,bake Oven		Appelez-nous	-
F216	318034503		Cap-end Bottom,white ,lh		Appelez-nous	-
F37	316217005		Probe,oven Temp				$ 78.67
F39	5304534377		Cord,service   (Replaces: 318144008)				$ 26.85
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5304400429		Screw (8-18 X 1 )		Appelez-nous	-
NI	318232522		Wiring Harness,main		Appelez-nous	-
NI	3015722		Clip-wire Retainer		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303935083		Screw 10-16x1-1/4				$ 9.19
NI	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
