01 - Cabinet
02 - Cavity
03 - Main Top And Backguard
04 - Oven Door And Storage Drawer
SELECT A DIAGRAM
New Model Search:

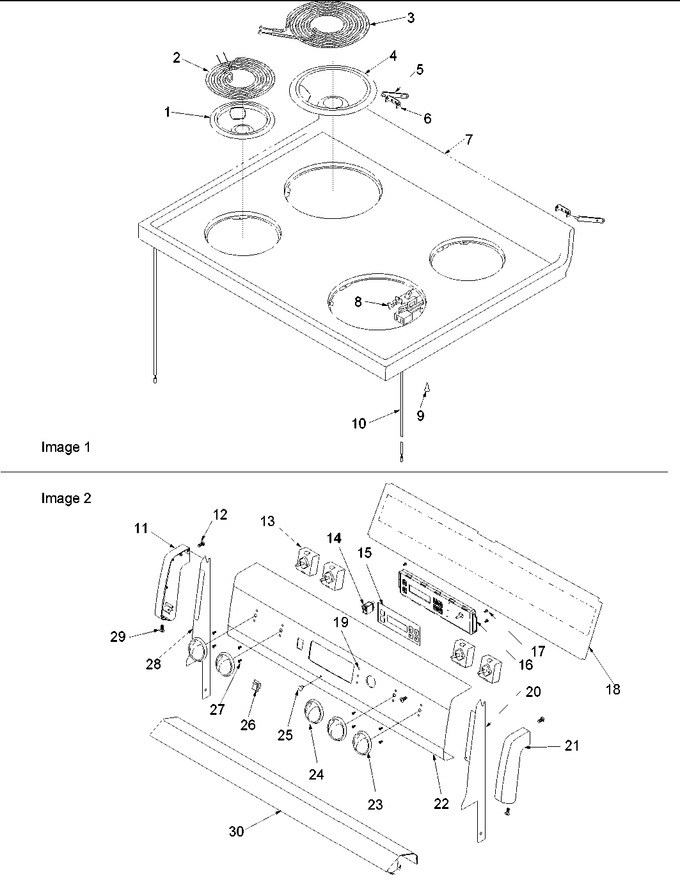

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10196406 | Bowl, Bnr 6``(chr) (Replaces: 308648K) |
|
Immediately | $ 12.05 | ||||
| 2 | WPW10345407 | Element, 3 Turn 1250w 6`` (Replaces: 31734603) |
|
Immediately | $ 141.79 | ||||
| 3 | WP9761346 | Element, 4 Turn 2100w 8`` (Replaces: 31734604) |
|
Immediately | $ 94.16 | ||||
| 4 | WPW10196405 | Bowl, Burner 8`` (chrome) (Replaces: 308649K) |
|
Immediately | $ 15.56 | ||||
| 5 | Y0315931 | Pin, Hinge |
|
- | |||||
| 6 | Y0306150 | Brkt, Hinge Strap Mtg |
|
- | |||||
| 7 | 306899W | Main Top-electric Upswept |
|
- | |||||
| 8 | 330031 | Kit, Top Element Term Block (Replaces: Y0089336) |
|
Immediately | $ 14.48 | ||||
| 9 | 31717001 | Spacer, Snap-in |
|
- | |||||
| 10 | Y0315430 | Support, Maintop |
|
- | |||||
| 11 | WP315843B | End Cap Lh (Replaces: 315843B) |
|
$ 52.60 | |||||
| 12 | WP693995 | Screw, No.8-18 X 3/8 P Hex Wsh T (Replaces: 31750432) |
|
Immediately | $ 6.47 | ||||
| 13 | WP74011243 | Switch, Infinite (Replaces: 31891202) |
|
$ 115.88 | |||||
| 14 | 31722801 | Light, Indicator (125v) |
|
- | |||||
| 15 | 31777904B | Overlay, Krc Mm (black) |
|
- | |||||
| 16 | 31771301 | Krc Electric |
|
$ 367.01 | |||||
| 17 | WP693995 | Screw, No.8-18 X 3/8 P Hex Wsh T (Replaces: 31750432) |
|
Immediately | $ 6.47 | ||||
| 18 | 0315887 | Cover, Upper Rear |
|
- | |||||
| 19 | 31780501 | Lens, Ind Light (mini Snap In) |
|
- | |||||
| 20 | 315876B | Bkgd. Support-rh |
|
- | |||||
| 21 | WP315841B | End Cap Rh (Replaces: 315841B) |
|
$ 53.06 | |||||
| 22 | 31779441B | Panel, Backguard(caloric) |
|
- | |||||
| 23 | 31760101B | Knob, Infinite Switch (blk) |
|
- | |||||
| 24 | 31760307B | Knob, Thermostat Krc (blk) |
|
- | |||||
| 25 | 31780502 | Lens, Indicator Light |
|
- | |||||
| 26 | Y0063997 | Switch, Rocker |
|
- | |||||
| 27 | 31750714 | Screw, No.8-32 X 1/4 |
|
- | |||||
| 28 | 315877B | Bkgd. Support-lh |
|
- | |||||
| 29 | 31750409 | Screw, No.8-18 X 1/4 Ptrshd(blk) |
|
- | |||||
| 30 | 31722704B | Shield, Bkgd Trim Heat |
|
- | |||||
| NI | 31778101 | Harness, Bkgd (6001/6200) |
|
- | |||||
| NI | 0308408 | Clip,element |
|
- | |||||
| NI | Y0315919 | Harness, Coil Elem. R.h. |
|
- | |||||
| NI | 31750422 | Screw, No.8-18 X 1/4 P Trs Hd |
|
- | |||||
| NI | Y0315918 | Harness, Coil Elem L.h. |
|
- |
