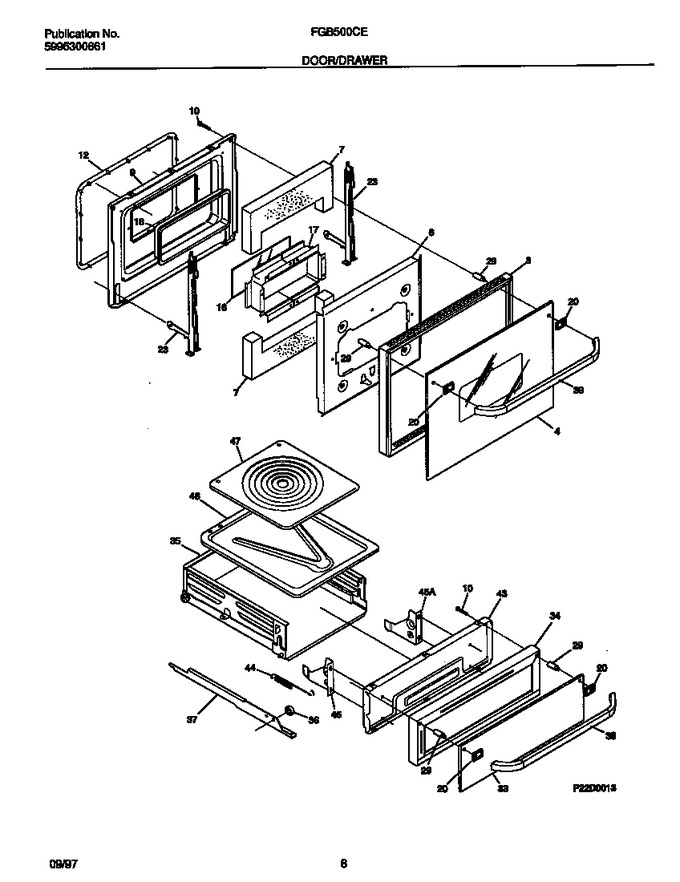

SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Burner


04 - Body


05 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303212560		Trim-oven Door, Black		Appelez-nous	-
4	5303302707		Glass-oven Door, White, Outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318048400		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
12	5303316768		Seal-oven Door		Appelez-nous	-
16	5303016336		Glass-oven Door, Heat Barrier		Appelez-nous	-
17	318162601		Retainer-glass		Appelez-nous	-
18	3016338		Seal-rope				$ 43.20
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
33	5303308464		Glass-drawer, Front		Appelez-nous	-
34	318116000		Panel-inner Drw		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
39	316091104		Handle-door, White, Oven		Appelez-nous	-
43	318107800		Liner,broiler Door		Appelez-nous	-
44	5303131030		Spring-broiler		Appelez-nous	-
45	318024401		Hinge-broiler, Rh		Appelez-nous	-
45	318024400		Hinge-broiler, Lh		Appelez-nous	-
46	318126200		Pan-broiler		Appelez-nous	-
47	318126300		Insert-broiler Pan		Appelez-nous	-
*21380	5303300414		Spacer, Cork & Rubber				$ 13.18
*21381	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
23A	318074103		Hinge-oven Door, (2)		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
35A	318107000		Drawer,broiler		Appelez-nous	-
35B	318136000		Panel, Broiler Drawer, Bottom (not Illustrated)		Appelez-nous	-
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
37B	3203722		Rail-drawer Rh (not Illustrated)		Appelez-nous	-
37C	5304414648		Screw, 10-24 X 1/4, Rail Mtg (not Illustrated)   (Replaces: 5303308458)				$ 14.18

    View Diagram in Separate Window       Print Part List
