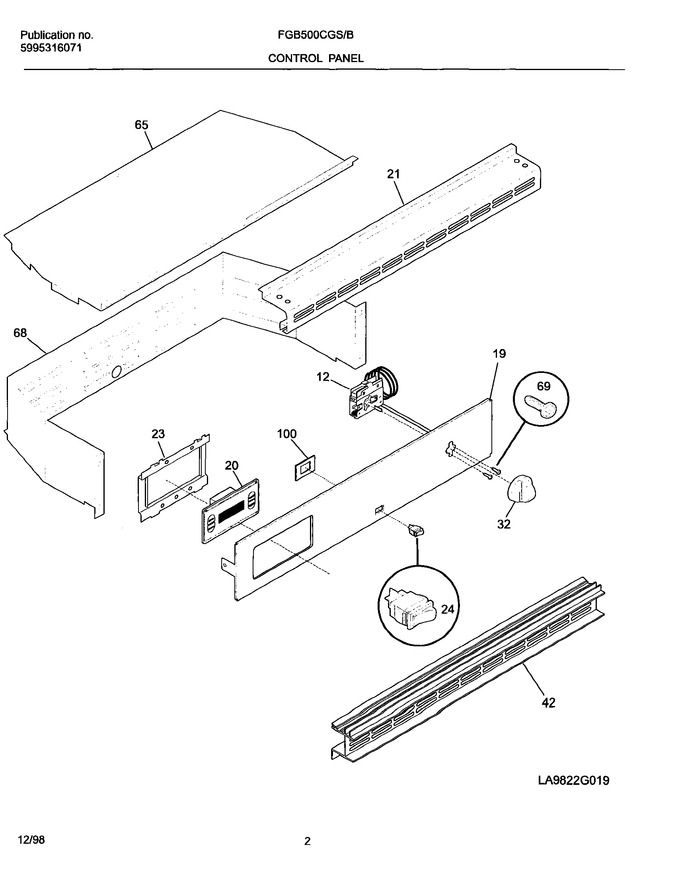

03 - Control Panel


05 - Burner


07 - Cavity


09 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318059200		Thermostat-oven		Appelez-nous	-
19	318129508		Panel-control,white		Appelez-nous	-
21	318176501		Trim-top, Satin		Appelez-nous	-
23	318015711		Bracket-clock Mtg		Appelez-nous	-
32	318016328		Knob-thermostat		Appelez-nous	-
42	5303271089		Trim Splasher, Satin		Appelez-nous	-
65	318038801		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
69	5303288565		Screw, Switch Mtg 8-32 X 7/16   (Replaces: 5303323134)				$ 3.12
100	318112200		Plate-mtg Rocker Switch		Appelez-nous	-
F20	318013907		Clock-timer		Appelez-nous	-
F24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303311528		Screw, 6-20 X 5/8		Appelez-nous	-
NI	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
