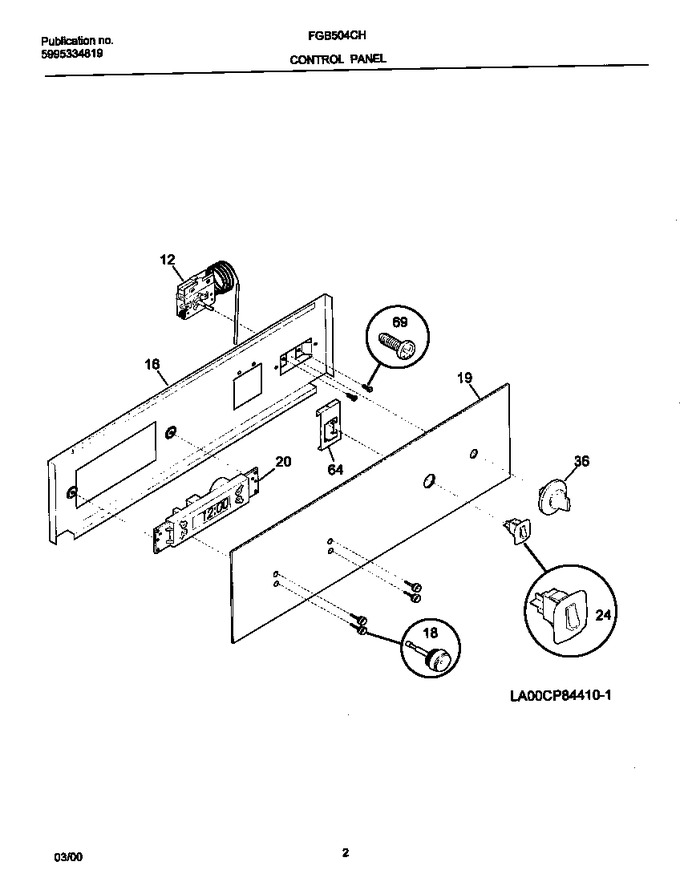

02 - Control Panel


03 - Burner


04 - Cavity


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318059202		Thermostat-oven		Appelez-nous	-
16	318116904		Plate,instrument Mtg		Appelez-nous	-
18	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-
19	318000007		Panel-control,glass ,black		Appelez-nous	-
20	318184801		Clock-timer		Appelez-nous	-
24	316090900		Switch-light/lamp				$ 95.18
36	318016329		Knob-thermostat		Appelez-nous	-
64	318110700		Bracket-light Switch		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
*51320	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*51321	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*51322	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*51323	5303323136		Screw-ground		Appelez-nous	-
*51324	5303324181		Screw < 6-18 X 3/8		Appelez-nous	-
